2 Audio Channels + 1 Contact Closure

FTA/FRA2C1 and FXA2C1 Series

Example of 2 Audio Channels + 1 Contact Closure

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

2 CH*

icon

I CH*

icon

1 CH*

icon

1 CH*

icon

Made in the USA

icon

WARRANTY

The ComNet FTA/FRA2C1 Series audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio.

Features

  • Automatic Electronic Current Limiting
  • Failure Relay Loss of Power Indication
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Standard ComFit models are hot-swappable.

Applications

  • Industrial Security: Ethernet, serial data, audio, and contact closure
  • transmission networks
  • Point-to-Point Audio Communication
  • Push-to-Talk Applications

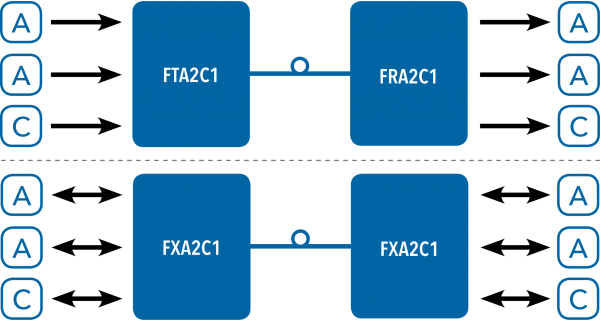

Application Diagram(s) (1)

Application Diagram(s) for FTA/FRA2C1 and FXA2C1 Series

Ordering Information

Part NumberDescription
FTA2C1M12-Channel Audio Transmitter
FRA2C1M12-Channel Audio Receiver
FTA2C1S12-Channel Audio Transmitter
FRA2C1S12-Channel Audio Receiver
FXA2C1M1A2-Channel Audio Transceiver “A” End
FXA2C1M1B2-Channel Audio Transceiver “B” End
FXA2C1S1A2-Channel Audio Transceiver “A” End
FXA2C1S1B2-Channel Audio Transceiver “B” End

* Model dependent

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
