2-Channel Digital Audio with Bi-directional Contact Closure

FVT/FVRXA2C1 Series

Example of 2-Channel Digital Audio with Bi-directional Contact Closure

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en
pdfManual
DWG CAD

icon

2

icon

1

icon

Made in the USA

icon

WARRANTY

icon

-40 º to +75 ºC

The ComNet FVT/FVRXA2C1 series audio multiplexer provides the transmission of two bi-directional audio signals and one bi-directional contact closure over one multimode or single mode optical fiber. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Bi-color (Red/Green) LED indicators confirm equipment operating status. These units are interchangeable between stand-alone or card mount configurations.

Features for FVT/FVRXA2C1 Series

  • Automatic Electronic Current Limiting
  • 24-bit 96kHz Digital Transmission
  • Transmits Balanced Line-Level Audio up to +6dBm
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.

Applications

  • - Recording Studios and Post-Production Facilities
  • - Elimination of EMI/RFI Interference in Audio Cables
  • - Optical Isolation for Elimination of Ground Loop Noise
  • Point-to-Point Audio Communication
  • Push-to-Talk Applications

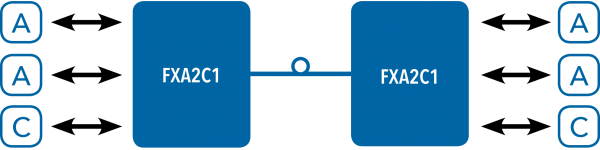

FVT/FVRXA2C1 Series Application Diagram(s) (1)

Application Diagram(s) for FVT/FVRXA2C1 Series

FVT/FVRXA2C1 Series Ordering Information

Part NumberDescription
