4-Channel Digitally Encoded Video with 2 Bi-Directional Data Channels and 1 Bi-directional Contact Closure Multiplexer

COMPAK412M1

Example of 4-Channel Digitally Encoded Video with 2 Bi-Directional Data Channels and 1 Bi-directional Contact Closure Multiplexer

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD
DOC A&E Specs

icon

-40 º to +75 ºC

icon

4

icon

2

icon

1

icon

Made in the USA

icon

WARRANTY

The ComNet FVT/FVR412M1 Series transmits four (4) channels of video utilizing state of the art digital encoding and decoding for high-quality video transmission, along with two (2) channels of bi-directional data and one (1) bi-directional contact closure over one multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR412 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485 (2 & 4 Wire) data.

Features

  • Digitally-encoded video transmission: transmits 4 real-time color video signals and 2 bi-directional data signals on one optical fiber
  • Supports RS232, RS422, and 2- or 4-wire RS485
  • Robust design ensures extremely high reliability in unconditioned out-of-plant environments
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty
  • ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).

Application Diagram(s) (1)

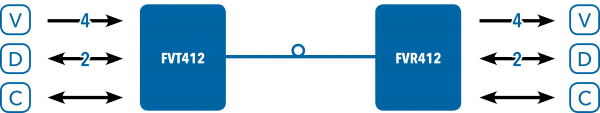

Application Diagram(s) for COMPAK412M1

Ordering Information

Part NumberDescription
COMPAK412M14-Channel Digitally-Encoded Video + 2 Bi-Directional Data Channels Transmitter and Receiver
