4-Channel 8-Bit Digital Video With 4 Contact Closures Over 4 Optical Fibers

COMPAK4VB

Example of 4-Channel 8-Bit Digital Video With 4 Contact Closures Over 4 Optical Fibers

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

4 CH

icon

4 CH

icon

Made in the USA

icon

WARRANTY

The ComNet FVR4C4B Video and Contact Closure Receiver unit supports four independent channels of video and four independent dry contact closures over four separate optical fibers. The FVT1C1B-M video mini-transmitter supports transmission of a fixed video and a contact closure signal using an 8-bit digitally encoded signal on one multimode or single mode fiber optic cable. State-of-the-art 8-bit digital decoding is utilized for the four video channels. The contact closure channels may be used with triggered-event CCTV camera systems, or other applications such as access controlled gates, doors, or other equipment requiring remote actuation and control.

Features

  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Automatic resettable solid-state current limiters
  • Simplex dry contact closures
  • Low video distortion with zero performance variation vs. optical path loss
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • 8-bit digitally encoded video exceeds all requirements for EIA RS-250C medium-haul transmission.
  • ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).
  • Standard ComFit models are hot-swappable.

Applications

  • Industrial Security: Triggered-event CCTV surveillance and incident detection
  • Industrial Control/Factory Automation: Triggered-event CCTV monitoring and control of critical manufacturing and shop floor processes
  • Transportation/ITS: Triggered-event CCTV roadside monitoring and surveillance systems, and actuation of remotely actuated gate/lane controllers

Application Diagram(s) (1)

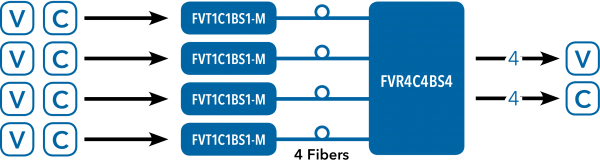

Application Diagram(s) for COMPAK4VB

Ordering Information

Part NumberDescription
COMPAK4VBFVR4C4BS4 Single Mode 4-Channel Video + Contact Receiver plus 4 × FVT1C1BS1-M Single Mode 1-Channel Video/Contact Transmitters

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
