EXP100 Expansion Module for use with FDW1000 Wiegand Module

EXP100 Series

Example of EXP100 Expansion Module for use with FDW1000 Wiegand Module

Availability: Worldwide

PDF Datasheet: en
pdfManualpdfQuick Start
DWG CAD
DOC A&E Specs

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

Made in the USA

icon

WARRANTY

When used with the FDW1000 series of fiber optic Wiegand extender modules, the ComNet EXP100 Expansion Module enables additional Wiegand, Magstripe, or F/2F-based control panels, readers, and associated door/gate hardware to be added to the network. The 2-wire RS-485 data interface between the expansion modules provides a secure and completely supervised connection, with excellent immunity to electrical noise and interference. Up to 8 EXP100s can be used in a drop-and-repeat/daisy-chain topology, and each EXP100 may be set to a unique address (1 thru 15) via DIP-switch selection. An auxiliary I/O (input/output) interface is available for ascertaining door, gate, and control panel status and signaling, and a relay interface provides the door strike or gate activation functions. These units are designed for long-term, reliable operation in harsh industrial environments, and a fault-specific LED indicator is provided for rapidly ascertaining the operating status of the expansion module and the link. Packaged in a rugged aluminum housing, the EXP100 is designed for shelf or surface mounting. The EXP100 is supplied as a matched set; a remote unit for door or gate locations, and a central unit for control panel installation.

Features for EXP100 Series

  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • IEEE 802.3 compliant
  • Made in the USA
  • RS-485 2-Wire Interface
  • Surge resistant
  • Wiegand-based reader formats/control panel-compatible
  • Secure operation
  • Relay interface provides door strike or gate activation functions
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Compact form-factor saves space in those installations where space may be at a premium.
  • Lifetime Warranty

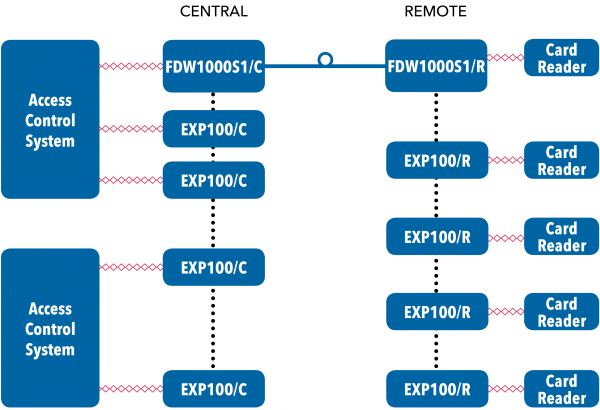

EXP100 Series Application Diagram(s) (1)

Application Diagram(s) for EXP100 Series

EXP100 Series Ordering Information

Part NumberDescription
EXP100/CExpansion Interface Module, Central Unit
EXP100/RExpansion Interface Module, Remote Unit

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
