Multi-protocol RS232/422/485 Data Transceiver featuring Self-healing Ring Operation

FDX57 Series

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED

icon

-40 º to +75 ºC

icon

1 OR 2*

icon

Made in the USA

icon

WARRANTY

The ComNet FDX57 series Self-Healing Ring Transceiver unit is a fully-digital modem designed for implementing RS232, RS422 or RS485 2 or 4-wire data communications networks of the highest possible reliability. A network of FDX57 units can support one full-duplex or two half-duplex data channels. These transceivers also feature data translation to convert between data protocols. Data re-clocking and regeneration permit an almost unlimited number of transceiver/controller units to be used within the network. These environmentally hardened transceivers are ideal for use in unconditioned out-of-plant or roadside installations and, unlike many competing designs, only one optical fiber is required between units to implement a fully self-healing ring.

Features

  • Remote Fault Indication allows the user to determine when a fiber break or loss of prime operating power has occurred, or a transceiver in the field has failed
  • Robust design assures extremely high reliability in unconditioned out-of-plant/roadside environments
  • NTCIP compatible
  • Wide optical dynamic range: optical attenuators are never required
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Meets EIA RS232 and RS422/RS485 (2 or 4-wire) specifications (Simplex or Duplex Operation)
  • Two Data Channel Capability: One full duplex or two half-duplex channels
  • Only one optical fiber required between units for Fault Tolerant/Self-Healing Ring Operation
  • Full data re-clocking and regeneration: no limit to the number of transceiver units used within the network
  • Supports supervised multiple master architecture for unparalleled network reliability
  • May be used to provide serial data protocol conversion between nodes (consult factory)
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty
  • ComFit standard form factor is designed for wall, surface, rack, or DIN rail mount installations (using optional card cage or DIN mounting bracket).

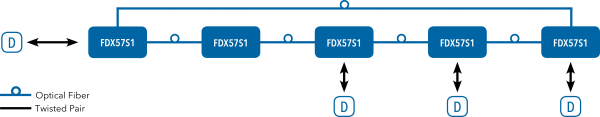

Application Diagram(s) (1)

Application Diagram(s) for FDX57 Series

Ordering Information

Part NumberDescription
FDX57M1Repeater
FDX57S1Repeater

The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
