CopperLine® Kit: Point-To-Multipoint Ethernet-Over-Coax Extender

CLEK41EOC

Example of CopperLine® Kit: Point-To-Multipoint Ethernet-Over-Coax Extender

Availability: Worldwide

PDF Datasheet: en
pdfManual

icon

EXTENDER

icon

INCLUDED ☞

icon

Made in the USA

CopperLine®

The ComNet ValueLine CLEK41EOC features four CopperLine® remote 10/100 Mbps single-channel units and a single four-channel local unit in a pre-packaged kit. Perfect for applications that face density challenges. The four-channel units will fit into any ComNet product rack. The four individual small-sized remote units can be placed up to 1,200 feet (400 meters) from the four channel local unit. Power supplies included. A DIP Switch allows configurable selection of 10 Mbps or 100 Mbps speed these units are simple to install. This CopperLine Value kit provides five units with power supplies.

Features for CLEK41EOC

  • Transmits individual Ethernet data over Coaxial cable
  • Extends Ethernet up to 1,200 feet (400 m) over Coaxial cable
  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • User-selectable data rate for maximum bandwidth and transmission distance utilization.
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Retrofit existing analog CCTV installations to Ethernetbased systems
  • CCTV systems for casinos, airports, school campuses

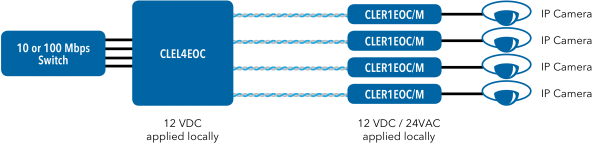

CLEK41EOC Application Diagram(s) (1)

Application Diagram(s) for CLEK41EOC

CLEK41EOC Ordering Information

Part NumberDescription
CLEK41EOC4 × Miniature CopperLine Single Channel Ethernet-over-Coax, 1 × 4 Port Ethernet-over-Coax Extender

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
