10/100 4TX+1EX Ethernet Self-managed Switch with Power over Ethernet (PoE+)

CLFE4+1SMS Series

Example of 10/100 4TX+1EX Ethernet Self-managed Switch with Power over Ethernet (PoE+)
CopperLine®

Availability: Worldwide
The CLFE4+1SMS Series is being eliminated. Please contact ComNet Customer Care for last time buy information and elimination date.

PDF Datasheet: en
pdfManual
DWG CAD

icon

-40º to +65ºC

icon

EXTENDER

icon

4 + 1

icon

30W

icon

Made in the USA

icon

WARRANTY

The ComNet CLFE4+1SMS[POE](C,U) is a five-port Ethernet switch with uplink management functionality and provides 4 copper ports operating at 10/100Mbps and is designed to combine four electrical ports into a single electrical Cat5, UTP or Coax CopperLine® port that forwards this data to the next network device. There is no programming required to use this product. The ComNet CLFE4+1SMS comes pre-programmed, preventing network video flooding with DIP switch selection of the fifth electrical port as uplink or as an unmanaged switch. Ports 1–4 of the CLFE4+1SMSPOE can supply up to thirty (30) watts of Power over Ethernet (PoE)* and incorporate PoE+ features based on the IEEE 802.3at standard.

Features for (5 Port PoE Switch)

  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • 10/100 Mbps Ethernet • 4 × 10/100 BASE-T/TX electrical ports with optional PoE+ • 1 × 10/1000Mbps CopperLine electrical uplink
  • Electrical ports support Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data.
  • Pre-programmed Port for uplink
  • IEEE 802.3 compliant
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.

Applications

  • CCTV systems for casinos, airports, school campuses
  • IP Video Applications
  • Retrofit of existing analog CCTV installations to Ethernet based systems

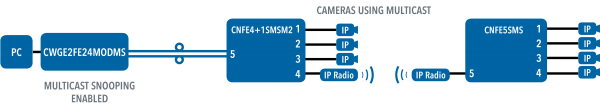

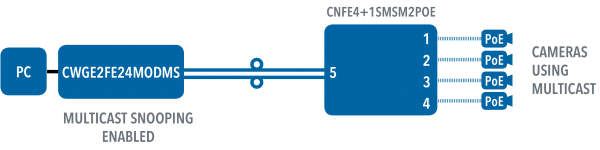

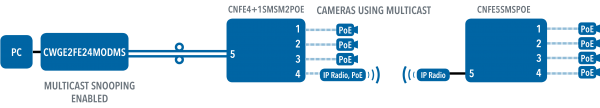

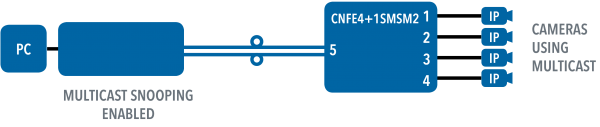

(5 Port PoE Switch) Application Diagram(s) (4)

Application Diagram(s) for CLFE4+1SMS SeriesApplication Diagram(s) for CLFE4+1SMS SeriesApplication Diagram(s) for CLFE4+1SMS SeriesApplication Diagram(s) for CLFE4+1SMS Series

(5 Port PoE Switch) Ordering Information

Part NumberDescription
CLFE4+1SMSC4 Port 10/100 Mbps Ethernet Self-managed Switch, with Coaxial CopperLine uplink port. Lifetime Warranty.
CLFE4+1SMSU4 Port 10/100 Mbps Ethernet Self-managed Switch, with UTP CopperLine uplink port. Lifetime Warranty.
CLFE4+1SMSPOEC4 Port 10/100 Mbps Ethernet Self-managed Switch with PoE+, with Coaxial CopperLine uplink port. Lifetime Warranty.
CLFE4+1SMSPOEU4 Port 10/100 Mbps Ethernet Self-managed Switch with PoE+, with UTP CopperLine uplink port. Lifetime Warranty.

* Power Supply for PoE applications is sold separately. Running multiple signals in the same twisted pair cable could affect signal quality and is not recommended.
