Ethernet-over-Copper Extender With Pass-Through PoE

CLFE(X)EO(C,U) Series

Example of Ethernet-over-Copper Extender With Pass-Through PoE
CopperLine®

Availability: Worldwide

PDF Datasheet: en  fr
pdfManual
DWG CAD
DOC A&E Specs

icon

-40 º to +75 ºC

icon

EXTENDER

icon

PASS-THRU

icon

Made in the USA

icon

WARRANTY

The ComNet CopperLine® Ethernet over copper line supports up to sixteen channels of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units may be powered by a PoE switch or the included power supply. Four, eight, and sixteen channel units operate from local power. These units provide the ultimate flexibility for extending a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.

Features for CLFE(X)EO(C,U) Series

  • Full 10/100 Mbps Bandwidth
  • Supports Multicast, Unicast and Jumbo Frame
  • Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
  • User-selectable data rate for maximum bandwidth and transmission distance utilization.
  • Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
  • Designed and manufactured in the USA
  • Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
  • Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
  • Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
  • Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Retrofit existing analog CCTV installations to Ethernet-based systems
  • CCTV systems for casinos, airports, school campuses

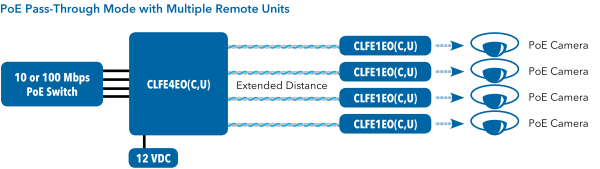

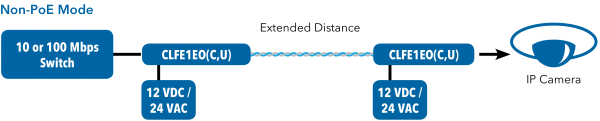

CLFE(X)EO(C,U) Series Application Diagram(s) (3)

Application Diagram(s) for CLFE(X)EO(C,U) SeriesApplication Diagram(s) for CLFE(X)EO(C,U) SeriesApplication Diagram(s) for CLFE(X)EO(C,U) Series

CLFE(X)EO(C,U) Series Ordering Information

Part NumberDescription
CLFE1EOC1 Port Ethernet-over-Coax Extender, Local/Remote Configurable, Small Size
CLFE1EOU1 Port Ethernet-over-UTP Extender, Local/Remote Configurable, Small Size
CLFE4EOC4 Port Ethernet-over-Coax Extender, Local/Remote Configurable, ComFit (1 Slot)
CLFE4EOU4 Port Ethernet-over-UTP Extender, Local/Remote Configurable, ComFit (1 Slot)
CLFE8EOC8 Port Ethernet-over-Coax Extender, Local, 1 RU 19" Rack Mount
CLFE8EOU8 Port Ethernet-over-UTP Extender, Local, 1 RU 19" Rack Mount
CLFE16EOC16 Port Ethernet-over-Coax Extender Local, 1 RU 19" Rack Mount
CLFE16EOU16 Port Ethernet-over-UTP Extender Local, 1 RU 19" Rack Mount
