Ethernet-over-Copper Extender With Pass-Through PoE
CLKFE1EO(C,U) Kit Series
Datasheet:
The ComNet CopperLine® Ethernet over copper line kit supports one channel of 10/100Mbps Ethernet with Pass-through PoE over twisted pair cable (CAT-5, UTP), or over coaxial cable. The single channel units included in the kit may be powered by a PoE switch or the included power supply. These units extend a powered device (PD) over long distance copper. DIP switches are provided for user-selection of local or remote, 10 or 100Mbps, and 1 pair or 4 pair (UTP) settings.
Features for CLKFE1EO(C,U) Kit Series
- Full 10/100 Mbps Bandwidth
- Supports Multicast, Unicast and Jumbo Frame
- Symmetric Bandwidth provides consistent upload and download with virtually zero packet loss over the total usable distance
- User-selectable data rate for maximum bandwidth and transmission distance utilization.
- Complies with all major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPs
- Designed and manufactured in the USA
- Transmits individual Ethernet data channels with Passthrough PoE over standard UTP or Coaxial cable
- Extends Ethernet up to 3,000 feet (914 m) at 10 Mbps or 2,000 feet (610 m) at 100 Mbps over UTP cable
- Extends Ethernet up to 5,000 feet (1,524 m) at 10 Mbps or 2,000 feet (610m) at 100 Mbps over Coaxial cable
- Extended Pass-through PoE meets the IEEE 802.3af standard for Power over Ethernet
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Small package for limited space installations
Applications
- Retrofit existing analog CCTV installations to Ethernet-based systems
- CCTV systems for casinos, airports, school campuses

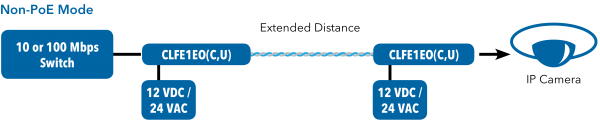

CLKFE1EO(C,U) Kit Series Application Diagram(s) (2)
CLKFE1EO(C,U) Kit Series Ordering Information
| Part Number | Description |
|---|---|
| CLKFE1EOC | 2 Ethernet-over-Coax Extenders, Local/Remote Configurable, Small Size, Includes Power Supplies. Lifetime Warranty. |
| CLKFE1EOU | 2 Ethernet-over-UTP Extenders, Local/Remote Configurable, Small Size, Includes Power Supplies. Lifetime Warranty. |
Running multiple signals in the same twisted pair cable could affect signal quality and is not recommended.
