Analog and IP Video over COAX

CL(T,R)VE(1,2)COAX Series

Example of Analog and IP Video over COAX

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en
pdfManual
DWG CAD

icon

-40 º to +75 ºC

icon

EXTENDER

icon

IEEE802.3at

icon

1 or 2

icon

1 or 2

icon

Made in the USA

icon

WARRANTY

CopperLine®

The ComNet CL(T,R)VE1COAX[POE][/M] is a communications link that combines composite analog baseband video and 10/100T(X) Ethernet on a single RG59 coaxial cable and transmits it up to 500 meters. The device is particularly suited to applications where the addition of IP Video to an existing analog video system is required. The CLTVE1COAXPOE[/M] models can provide power to the camera via PoE.

Features for CL(T,R)VE(1,2)COAX Series

  • Simultaneous transmission of IP video, and composite analog video up to 500m over RG59 coaxial cable
  • Proprietary adaptive analog equalizer for extending the reach of composite analog video
  • Full-duplex digital communications
  • Continuous Transmitter to Receiver Ethernet throughput up to 36 Mbps
  • Continuous Receiver to Transmitter Ethernet throughput up to 4 Mbps
  • Single-Channel Transmitter with optional IEEE802.3at PoE power capability from 24 VAC
  • Single or Dual Channel Receiver
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

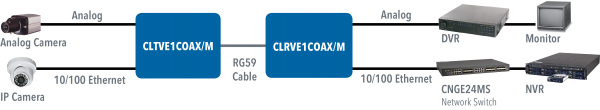

CL(T,R)VE(1,2)COAX Series Application Diagram(s) (1)
