Ethernet over twisted pair or coaxial cable using VDSL2 (EoVDSL) technology

CNFE1EOC Series

Availability: Worldwide

PDF Datasheet: en  pt  es
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED

icon

EXTENDER

icon

Made in the USA

ValueLine

The ComNet CNFE1EOC-M modems support Ethernet over twisted pair or coaxial cable, at data rates of up to 90 Mbps. Ethernet data may be transmitted over a telephone-grade twisted copper pair, legacy serial cabling, or standard 75 ohm coaxial cable circuits, making this unit ideal for those applications where it is desired to utilize an existing installed base of copper wiring for Ethernet transmission. These modems are the perfect solution for upgrading a legacy twisted copper or coaxial cable plant for use with Ethernet, when compared to the significant costs of installing new network cabling. The fastest usable data rate is automatically selected, depending upon the transmission distance and cable quality. LED status indicators are provided for rapidly ascertaining the operating status of the modem and the link.

Features

  • Utilizes latest VDSL2 technology for fastest data rate transmission and greatest transmission distance
  • Supports transmission distances of up to 10,000 ft (3 km) over twisted copper, or up to 1500 ft (457 m) over coaxial cable
  • Symmetric line rates of over 91 Mbps
  • Automatically sets fastest possible data rate vs. cable quality and transmission distance
  • User-configurable master/remote, forward error correction, asymmetrical/symmetrical data, and long-reach/short-reach selection
  • IEEE 802.3 Compliant. 10/100 BASE-T/TX Ethernet port with automatic MDI/MDI-X crossover
  • Screw Terminals for twisted copper circuits, or BNC connector for coaxial cable
  • A ComNet ValueLine Product – Lower price: designed for installation in benign (0 to +60º C) operating environments.
  • Ideal for multiple-channel Ethernet over VDSL applications where modem space may be limited
  • Compact form-factor saves space in those installations where space may be at a premium.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Ethernet transmission over existing copper telephone-grade, serial or 75Ω coaxial cable

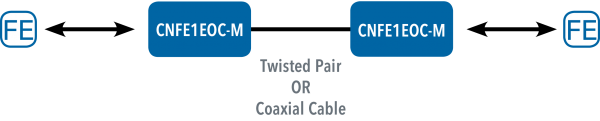

Application Diagram(s) (1)

Application Diagram(s) for CNFE1EOC Series

Ordering Information

Part NumberDescription
CNFE1EOC-MEthernet over Twisted Pair or Coax, Small Size
CNFE1EOCEthernet over Twisted Pair or Coax, ComFit Size

The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
