In-Dome Ethernet over COAX Module for Vicon Surveyor HD Dome Camera

CNFEVCNEOC

Availability: Worldwide

PDF Datasheet: en
pdfManual

icon

EXTENDER

No longer available after Jan 1, 2019

The ComNet CNFEVCNEOC for Vicon Surveyor Dome Cameras supports high-speed Ethernet transmission over standard 75ohm coaxial cable circuits, at a data rate of 100 Mbps, and transmission distances of up to 305 meters (1000 feet). This in-dome module is the perfect solution for upgrading an existing coaxial cable plant for use with Ethernet, when compared to the significant costs and nuisance of installing new network cabling. The unit is configured to operate in remote mode and is intended to be paired with a compatible Ethernet over coax extender operating in Master mode and in 100Mbps mode. True plug-and-play design ensures ease of installation and operation, and no adjustments are ever required.

Features

  • IEEE 802.3 compliant
  • Supports transmission distances of up to 305 meters (1000 feet) over standard 75Ω coaxial cable, at symmetric data rates up to 100 Mbps
  • User-configurable local/remote device selection
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Compact form-factor saves space in those installations where space may be at a premium.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • In-Dome Ethernet over Coax Module for Vicon Surveyor HD Dome Camera

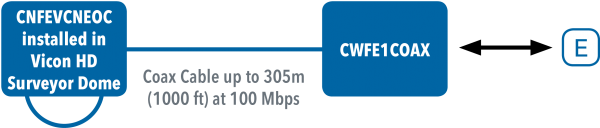

Application Diagram(s) (1)

Application Diagram(s) for CNFEVCNEOC

Ordering Information

Part NumberDescription
CNFEVCNEOCEthernet over Coax for Vicon Surveryor HD Dome Camera
