2 Channel 10/100 Mbps Ethernet Electrical To Optical Media Converter With Optional Power Over Ethernet (PoE+)

CNFE200X Series

Example of 2 Channel 10/100 Mbps Ethernet Electrical To Optical Media Converter With Optional Power Over Ethernet (PoE+)

Availability: NA Only

PDF Datasheet: en  fr
pdfManual
DWG CAD

icon

-40 º to +75 ºC

icon

IEEE802.3at

icon

CONVERTER

icon

2

icon

Made in the USA

icon

WARRANTY

icon

TAA Compliant

The ComNet Ethernet CNFE200X media converter series are two-channel Ethernet electrical to optical media converters with optional PoE+. These auto-negotiating devices accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This series of media converters are available as multimode or single-mode and one and two fiber SC and ST optical connectors. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE200X series can be powered by wide range AC or DC input while the CNFE200XPOE units meet the 802.3at standard and provide 30 watts of PoE+ power, with an option for a 60 watt CNFE200XPOEHO model. The PoE models can be powered by a sold seperately 48 to 57 volt DC power supply.

Features for CNFE200X Series

  • Optional 30W or 60W PoE+ on ports 1 and 2
  • 10/100 Mbps Ethernet • 2 × 10/100 BASE-T/TX electrical ports • 100 BASE-FX optical port
  • Optical port supports 100 Mbps full duplex data
  • Distances up to: 3 km (2 mi) Multimode 20 km (12 mi) Single Mode
  • Link Fault Pass-Through feature detects if either of the copper ports are down and triggers the optical port to switch states to indicate the failure to the head-end.
  • ST or SC optical connectors
  • 1 or 2 fiber design
  • Full size units feature a contact closure output for remote side link failure detection
  • IEEE 802.3 compliant
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

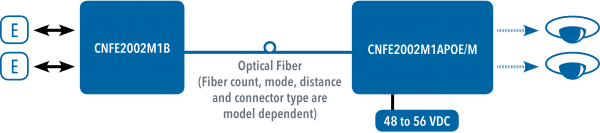

CNFE200X Series Application Diagram(s) (1)

Application Diagram(s) for CNFE200X Series

CNFE200X Series Ordering Information

Part NumberDescription
CNFE2002M1A2TX-to-1 FX 100 Mbps Media Converter (A), ST Connector, Multimode, 1 fiber. Lifetime Warranty.
CNFE2002M1B2TX-to-1 FX 100 Mbps Media Converter (B), ST Connector, Multimode, 1 fiber. Lifetime Warranty.
CNFE2002S1A2TX-to-1 FX 100 Mbps Media Converter (A), ST Connector, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2002S1B2TX-to-1 FX 100 Mbps Media Converter (B), ST Connector, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2003M22TX-to-1 FX 100 Mbps Media Converter, SC Connector, Multimode, 2 fiber. Lifetime Warranty.
CNFE2003S22TX-to-1 FX 100Mbps Media Converter, SC Connector, sm, 2 fiber. Lifetime Warranty.
CNFE2004M1A2TX-to-1 FX 100 Mbps Media Converter (A), SC Connector, Multimode, 1 fiber. Lifetime Warranty.
CNFE2004M1B2TX-to-1 FX 100Mbps Media Converter (B), SC Connector, Multimode, 1 fiber. Lifetime Warranty.
CNFE2004S1A2TX-to-1 FX 100 Mbps Media Converter (A), SC Connector, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2004S1B2TX-to-1 FX 100Mbps Media Converter (B), SC Connector, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2005M22TX-to-1 FX 100 Mbps Media Converter, ST Connector, Multimode, 2 fiber. Lifetime Warranty.
CNFE2005S22TX-to-1 FX 100Mbps Media Converter, ST Connector, Single Mode, 2 fiber. Lifetime Warranty.
CNFE2002M1A/M2TX-to-1 FX Small Size 100Mbps Media Converter (A), ST Connector, AC/DC Power, Multimode, 1 fiber. Lifetime Warranty.
CNFE2002M1B/M2TX-to-1 FX Small Size 100Mbps Media Converter (B), ST Connector, AC/DC Power, mm, 1 fiber. Lifetime Warranty.
CNFE2002S1A/M2TX TO 1 FX Small Size 100Mbps Media Converter (A), ST Connector, AC/DC Power, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2002S1B/M2TX TO 1 FX Small Size 100Mbps Media Converter (B), ST Connector, AC/DC Power, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2003M2/M2TX-to-1 FX Small Size 100Mbps Media Converter, SC Connector, AC/DC Power, Multimode, 2 fiber. Lifetime Warranty.
CNFE2003S2/M2TX TO 1 FX Small Size 100Mbps Media Converter, SC Connector, AC/DC Power, Single Mode, 2 fiber. Lifetime Warranty.
CNFE2004M1A/M2TX TO 1 FXSmall Size 100Mbps Media Converter (A), SC Connector, AC/DC Power, Multimode, 1 fiber. Lifetime Warranty.
CNFE2004M1B/M2TX TO 1 FXSmall Size 100Mbps Media Converter (B), SC Connector, AC/DC Power, Multimode, 1 fiber. Lifetime Warranty.
CNFE2004S1A/M2TX TO 1 FX Small Size 100Mbps Media Converter (A), SC Connector, AC/DC Power, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2004S1B/M2TX TO 1 FX Small Size 100Mbps Media Converter (B), SC Connector, AC/DC Power, Single Mode, 1 fiber. Lifetime Warranty.
CNFE2005M2/M2TX TO 1 FX Small Size 100Mbps Media Converter, ST Connector, AC/DC Power, Multimode, 2 fiber. Lifetime Warranty.
CNFE2005S2/M2TX TO 1 FX Small Size 100Mbps Media Converter, ST Connector, AC/DC Power, Single Mode, 2 fiber. Lifetime Warranty.
CNFE2002M1APOE/M2TX TO 1 FX Small Size 100Mbps Media Converter (A), ST Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002M1BPOE/M2TX TO 1 FX Small Size 100Mbps Media Converter (B), ST Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002S1APOE/M2TX TO 1 FX Small Size 100Mbps Media Converter (A), ST Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002S1BPOE/M2TX TO 1 FX Small Size 100Mbps Media Converter (B), ST Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002M1APOEHO/M2TX TO 1 FX Small Size 100Mbps Media Converter (A), ST Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002M1BPOEHO/M2TX TO 1 FX Small Size 100Mbps Media Converter (B), ST Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002S1APOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (A), ST Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2002S1BPOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (B), ST Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2003M2POE/M2TX TO 1 FX Small Size 100 Mbps Media Converter, SC Connector, AC/DC Power, Multimode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2003S2POE/M2TX TO 1 FX Small Size 100 Mbps Media Converter, SC Connector, AC/DC Power, Single Mode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2003M2POEHO/M2TX TO 1 FX Small Size 100Mbps Media Converter, SC Connector, AC/DC Power, Multimode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2003S2POEHO/M2TX TO 1 FX Small Size 100Mbps Media Converter, SC Connector, AC/DC Power, Single Mode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004M1APOE/M2TX TO 1 FX Small Size 100 Mbps Media Converter (A), SC Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004M1BPOE/M2TX TO 1 FX Small Size 100 Mbps Media Converter (B), SC Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004S1APOE/M2TX TO 1 FX Small Size 100 Mbps Media Converter (A), SC Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004S1BPOE/M2TX TO 1 FX Small Size 100 Mbps Media Converter (B), SC Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004M1APOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (A), SC Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004M1BPOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (B), SC Connector, AC/DC Power, Multimode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004S1APOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (A), SC Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2004S1BPOEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter (B), SC Connector, AC/DC Power, Single Mode, 1 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2005M2POE/M2TX TO 1 FX Small Size 100Mbps Media Converter, ST Connector, AC/DC Power, Multimode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2005S2POE/M2TX TO 1 FX Small Size 100 Mbps Media Converter, ST Connector, AC/DC Power, Single Mode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2005M2POEHO/M2TX TO 1 FX Small Size 100 Mbps Media Converter, ST Connector, AC/DC Power, Multimode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
CNFE2005S2POEHO/M2TX TO 1 FX Small Size 100Mbps Media Converter, ST Connector, AC/DC Power, Single Mode, 2 fiber, 48V POE, Power Supply Not Included. Lifetime Warranty.
