10/100TX 4TX/1FX Ethernet Self-Managed Switch With Power Over Ethernet (PoE)

CNFE4+1SMSPOE Series

Example of 10/100TX 4TX/1FX Ethernet Self-Managed Switch With Power Over Ethernet (PoE)

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

-40 º to +75 ºC

icon

IEEE802.3at

icon

4TX + 1FX

icon

Made in the USA

icon

WARRANTY

The ComNet CNFE4+1SMS(M,S)2POE is a five-port Ethernet switch with uplink management functionality and provides 4 copper ports operating at 10/100 Mbps and is designed to combine four electrical ports into a single optical port that forwards this data to the next network device. There is no programming required to use this product. The CNFE4+1SMS(M,S)2POE comes pre-programmed, preventing network video flooding with dip switch selection of fiber port as uplink or as an unmanaged switch. Ports 1–4 can supply up to thirty watts of power (“Power over Ethernet”) and incorporate PoE+ features based on the IEEE 802.3at standard.

Features for CNFE4+1SMSPOE Series

  • No Programming Required
  • Optical port supports 100 Mbps full duplex data
  • Pre-programmed Port for uplink
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • IEEE 802.3 compliant
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Standard ComFit models are hot-swappable.
  • ST or SC optical connectors

Applications

  • IP Video
  • 10/100 Mbps Ethernet
  • High Speed Computer Links

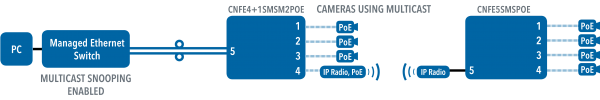

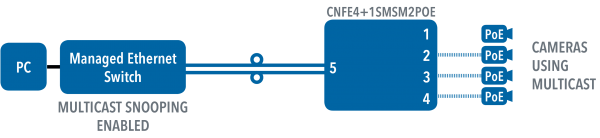

CNFE4+1SMSPOE Series Application Diagram(s) (2)

Application Diagram(s) for CNFE4+1SMSPOE SeriesApplication Diagram(s) for CNFE4+1SMSPOE Series

CNFE4+1SMSPOE Series Ordering Information

Part NumberDescription
CNFE4+1SMSM2POE5 Port 10/100 Mbps Ethernet Self-managed Switch 1FX, with PoE+ on 4TX, 2 Fiber ST, Multimode 62.5/125µm, 16 dB, up to 3 km (2 mi). Lifetime Warranty.
CNFE4+1SMSS2POE5 Port 10/100 Mbps Ethernet Self-managed Switch 1FX, with PoE+ on 4TX, 2 Fiber ST, Single Mode 9/125µm, 16 dB, up to 48 km (30 mi). Lifetime Warranty.
CNFE4+1SMSM2POE/SC5 Port 10/100 Mbps Ethernet Self-managed Switch 1FX, with PoE+ on 4TX, 2 Fiber SC, Multimode 62.5/125µm, 16 dB, up to 3 km (2 mi). Lifetime Warranty.
CNFE4+1SMSS2POE/SC5 Port 10/100 Mbps Ethernet Self-managed Switch 1FX, with PoE+ on 4TX, 2 Fiber SC, Single Mode 9/125µm, 16 dB, up to 48 km (30 mi). Lifetime Warranty.
