10/100T(X) 4TX Ethernet Self-managed Switch

CNFE4SMS

Availability: Worldwide

PDF Datasheet: en  fr
pdfManual
DWG CAD

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

4TX

icon

Made in the USA

icon

WARRANTY

The ComNet CNFE4SMS is a four-port switch with uplink management functionality and provides 4 Ethernet ports operating at 10/100 Mbps and is designed to combine three electrical ports into an electrical port that forwards this data to the next network device. The ComNet CNFE4SMS comes pre-programmed, preventing network video flooding with DIP switch selection of port 4 as uplink or as an unmanaged switch.

Features

  • Pre-programmed Port for uplink
  • IEEE 802.3 compliant
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Standard ComFit models are hot-swappable.

Applications

  • IP Video Applications
  • 10/100 Mbps Ethernet
  • High Speed Computer Links

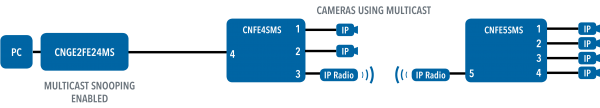

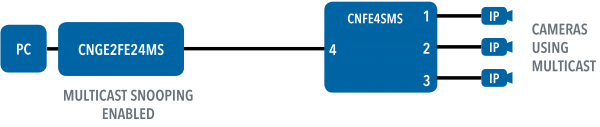

Application Diagram(s) (2)

Application Diagram(s) for CNFE4SMSApplication Diagram(s) for CNFE4SMS

Ordering Information

Part NumberDescription
CNFE4SMS4 Port 10/100 Mbps Ethernet Self-managed Switch 4TX, up to 100m (328 ft)

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
