10/100T(X) 5TX Ethernet Self-managed Switch

CNFE5SMS

Availability: Worldwide

PDF Datasheet: en  fr  es
pdfManual
DWG CAD

icon

INCLUDED

icon

-40 º to +75 ºC

icon

5TX

icon

Made in the USA

icon

WARRANTY

The ComNet CNFE5SMS is a five-port self-managed Ethernet switch with uplink management functionality. It provides 5 ports operating at 10/100 Mbps and is designed to combine Ethernet data from the four electrical ports into a fifth electrical port and forward that data to the next network device. The ComNet CNFE5SMS comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch.

Features

  • IEEE 802.3 compliant
  • Pre-programmed Port for uplink to other Ethernet devices
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Standard ComFit models are hot-swappable.

Applications

  • IP Video Applications
  • 10/100 Mbps Ethernet
  • High Speed Computer Links

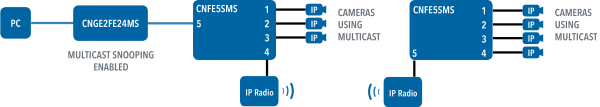

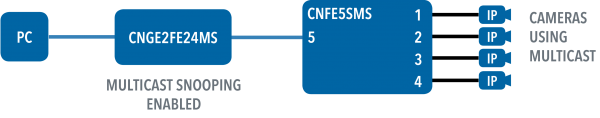

Application Diagram(s) (2)

Application Diagram(s) for CNFE5SMSApplication Diagram(s) for CNFE5SMS

Ordering Information

Part NumberDescription
CNFE5SMS10/100TX 5TX Ethernet Self-managed Switch

The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
