10/100TX 5 Port Ethernet Self-managed Switch with Power over Ethernet (PoE)

CNFE5SMSPOE

Availability: Worldwide

PDF Datasheet: en  fr  es
pdfManual

icon

-40 º to +75 ºC

icon

802.3at

icon

5TX

icon

Made in the USA

icon

WARRANTY

The ComNet CNFE5SMSPOE is a five-port self-managed Ethernet switch with uplink management functionality. It provides 5 ports operating at 10/100Mbps and is designed to combine Ethernet data from the four electrical ports into a fifth electrical port and forward that data to the next network device. There is no programming required to use this product. The ComNet CNFE5SMSPOE comes pre-programmed, preventing network video flooding with a switch selection that allows the switch to be used as an uplink or as an unmanaged switch. Ports 1–4 can supply up to thirty watts of Power over Ethernet (PoE) power and incorporate PoE+ features based on the IEEE 802.3at standard.

Features

  • No Programming Required
  • Pre-programmed Port for uplink to other Ethernet devices
  • IEEE 802.3 compliant
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • IP Video Applications
  • 10/100 Mbps Ethernet
  • High Speed Computer Links

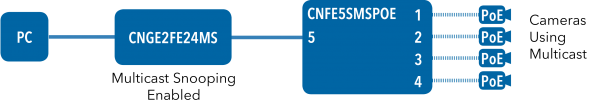

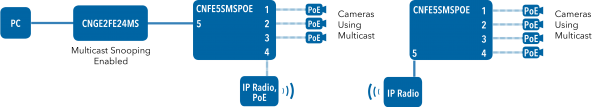

Application Diagram(s) (2)

Application Diagram(s) for CNFE5SMSPOEApplication Diagram(s) for CNFE5SMSPOE

Ordering Information

Part NumberDescription
CNFE5SMSPOE5 Port 10/100 Mbps Ethernet Self-managed Switch with PoE+ on Ports 1–4, up to 100m (328 ft)
