10/100/1000 Mbps Intelligent Redundant Ring Gigabit Switch With Optional PoE+

CNGE4+2SMS Series

Example of 10/100/1000 Mbps Intelligent Redundant Ring Gigabit Switch With Optional PoE+

Availability: Worldwide

PDF Datasheet: en
DOC A&E Specs


-40 º to +75 ºC






IEEE 802.3at




4 + 2


Made in the USA




30 W or 60 W

The ComNet CNGE4+2SMS[POE][HO]/M is a six port intelligent switch with light management functionality. It provides four 10/100/1000Base-T(X) copper ports and two 100/1000Base-FX SFP ports. The CNGE4+2SMS[POE][HO]/M provides exclusive functionality for easy field deployment including DIP switch based operation of RSTP for creating redundant network topologies as well as preventing network video flooding of multicast traffic using IGMP snooping. Ports 1 through 4 can optionally supply up to thirty (30) watts of power per port based on the IEEE 802.3at standard. An optional High Output (HO) version is also available that can supply up to sixty (60) watts of PoE from ports 1 through 4. This product is fully compatible with the ComNet exclusive CopperLine® SFP modules for operation over extended distance UTP or Coax cable. The ComNet exclusive Port Guardian feature provides additional cyber security protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. The intrusion event is reported back to the operator using SNMP.

Features for CNGE4+2SMS Series

  • Several features can be enabled with no programming required: - RSTP (Rapid Spanning Tree Protocol) - IGMP V2 Snooping - Simple Multicast Flooding Prevention (Star/Linear topologies) - Dual Redundant SFP Mode
  • SFP Ports support 100 or 1000 Mbps full duplex data
  • SFP Ports compatible with CopperLine CL-SFP modules
  • IEEE802.3at Power over Ethernet (PoE+)
  • PoE status monitoring & automatic reboot function†
  • Event notification through SNMP traps and Relay Output
  • 30 W or 60 W PoE+ on Ports 1-4†
  • Redundant AC/DC inputs for uninterrupted operation in the event of a loss of operating power or a power supply failure
  • Supports Link Layer Discovery Protocol (LLDP)
  • SNMP v1/v2c for network management
  • Port Guardian prevents network intrusion through intelligent physical port lockout
  • RSTP supported
  • IGMP v2 snooping supported
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
  • Designed for wall or DIN rail mount installations (using optional DIN mounting bracket)


  • 10/100/1000 Mbps Gigabit Ethernet
  • Perimeter Protection Surveillance Systems
  • IP Video

CNGE4+2SMS Series Application Diagram(s) (2)

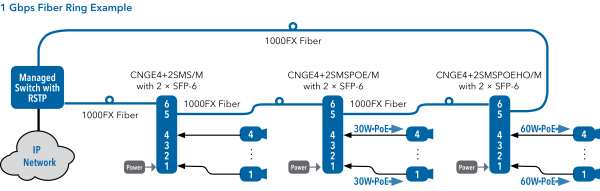

Application Diagram(s) for CNGE4+2SMS SeriesApplication Diagram(s) for CNGE4+2SMS Series

CNGE4+2SMS Series Ordering Information

Part NumberDescription
CNGE4+2SMS/MSmall Surface Mount 6 Port Gigabit Ethernet Self-managed Switch 2 SFP FX, 4TX, 2 Contact Closure. Lifetime Warranty.
CNGE4+2SMSPOE/MSmall Surface Mount 6 Port Gigabit Ethernet Self-managed Switch 2 SFP FX, 4TX with 30W of PoE+ power, 2 Contact Closure. Lifetime Warranty.
CNGE4+2SMSPOEHO/MSmall Surface Mount 6 Port Gigabit Ethernet Self-managed Switch, 2 SFP FX, 4TX with 60W of PoE+ power, 2 Contact Closure. Lifetime Warranty.

* SFP = Small Form-Factor Pluggable Module † CNGE4+2SMSPOE/M or CNGE4+2SMSPOEHO/M models only
