Industrially Hardened High Throughput and Scalable Dual Radio Wireless Bridge with Optional External Antenna

NW10DR

Example of Industrially Hardened High Throughput and Scalable Dual Radio Wireless Bridge with Optional External Antenna

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en

icon

-40 º to +75 ºC

icon

IEEE802.3at

icon

IEEE802.3af/at

icon

IP67

icon

1

icon

1

NetWave®

The NetWave® industrially hardened narrow bandwidth dual wireless radio is is used for redundant ring and drop & repeat topologies when used with an external antenna. Radio 1 is a 19dBi 17 degree internal antenna while radio 2 has dual N-Female connectors for an external 5GHz antenna. The wide range of channel spectrum widths available on the NW10DR series of radios gives you the option of using wide channel widths for high throughput deployments that have little interference and noise while the narrow channel widths will increase the number of available non overlapping channels and improve stability in crowded RF environments but decrease maximum throughput. The NW10DR is FCC certified for use in North America.

Features

  • 802.11a/n Compliant
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • RF Spectrum Survey Tools
  • Antenna Alignment Tools
  • Narrow Channel Spectrum Widths for large and noisy deployments
  • 5, 10, 20 and 40 Mhz Channel Bandwidth Support
  • Up to 240 Mbps Throughput
  • Distances up to 2 miles
  • IEEE802.3at PoE Compliant PD on port 1
  • IEEE802.3af power source (PSE) available on port 2
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
  • Integration of Ethernet where right-of-way issues mandate wireless communications
  • ITS traffic signalization networks and Video Detection Systems (VDS)
  • ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
  • Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
  • Installations that require redundant ring or linear drop and repeat topologies
  • Large deployments where there is significant channel overlapping causing interference
  • Point to Multi-Point topologies whereby several Clients connect to one Access Point
  • Electrical substation video and perimeter surveillance

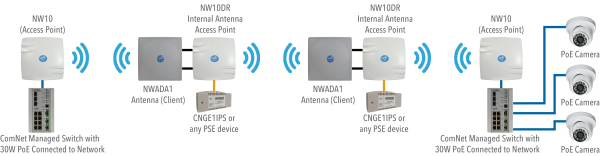

Application Diagram(s) (1)

Application Diagram(s) for NW10DR

Ordering Information

Part NumberDescription
NW10DRIndustrially Hardened Dual Radio Narrow Bandwidth Wireless Bridge, Supports distances up to 2 mi/3.2 km, FCC certified for North America
NW10DRICIndustrially Hardened Dual Radio Narrow Bandwidth Wireless Bridge, Supports distances up to 2 mi/3.2 km, Industry Canada certified for North America
