Environmentally Hardened High Throughput Wireless Ethernet Device

NW7 Series

Availability: Obsoleted

PDF Datasheet: en  fr
pdfManualpdfQuick Start
DOC A&E Specs

icon

-40 º to +75 ºC

icon

802.3at

icon

802.3af/at

icon

IP67

icon

2

NetWave®

The NetWave NW7[E] environmentally hardened High Throughput (HT) wireless Ethernet transmission device can be configured through the embedded User Interface as a Client or as an Access Point. This single radio model was designed for high throughput point-to-point or multi-point applications and comes with an integrated 19 dBi, 17º beamwidth antenna. The NW7[E] supports up to 240 Mbps throughput using MIMO technology. The units can be powered by an 802.3af/at PoE compliant device or through a sold-separately PoE injector with the second Ethernet port serving as an IEEE802.3at power source. The NW7 is FCC certified for use in North America and the NW7E is ETSI, DFS and TPC certified for use in the European Union.

Features

  • High throughput
  • Over current protection and 3 layers of Ethernet surge suppression on the PD port
  • 802.11a/n Compliant
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • Environmentally hardened for deployment in difficult unconditioned out-of-plant and roadside installations
  • Meets class IP67 dust and water immersion protection standards
  • ETSI Standards (EU Region only): – DFS Dynamic Frequency Selection – TPC Transmit Power Control
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • RF Spectrum Survey Tools
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty
  • IEEE802.3at PoE-compliant PD
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
  • Integration of Ethernet where right-of-way issues mandate wireless communications
  • ITS traffic signalization networks and Video Detection Systems (VDS)
  • High Throughput Back Haul Link for installations that require connecting to more than one Ethernet device
  • ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
  • Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
  • Electrical substation video and perimeter surveillance
  • Ideal for PoE Camera connectivity
  • Multicast traffic-based video systems

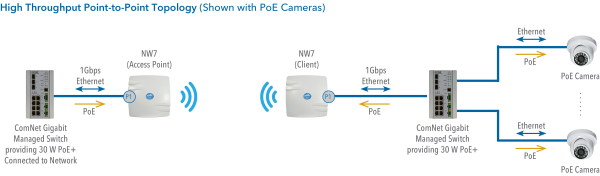

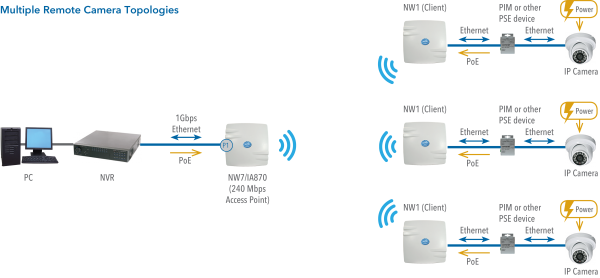

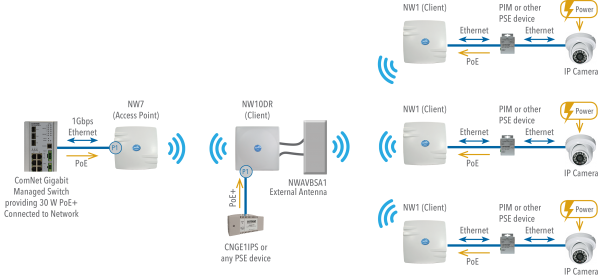

Application Diagram(s) (3)

Application Diagram(s) for NW7 SeriesApplication Diagram(s) for NW7 SeriesApplication Diagram(s) for NW7 Series

Ordering Information

Part NumberDescription
NW7Individual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port 1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, FCC certified for use in NA Region
NW7EIndividual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port 1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, ETSI certified for use in EU Region
