Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Device

NW9[E]

Example of Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Device

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en
pdfManualpdfQuick Start

icon

-40 º to +70 ºC

icon

5GHz 802.11ac

icon

IEEE802.3af

icon

802.3af/at

icon

IP67

icon

2

NetWave®

The NetWave NW9[E] ultra-high throughput, impact-resistant hardened wireless Ethernet transmission device can be configured through the embedded User Interface as a Client or as an Access Point. This single radio model was designed for high throughput point-to-point or multi-point applications and comes with an integrated 19dBi, 17º beamwidth antenna. The NW9[E] supports up to 500 Mbps throughput using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE compliant device or through a sold-separately PoE injector with the second Ethernet port serving as an IEEE802.3at power source. The NW9 is FCC certified for use in North America and the NW9E is ETSI, DFS and TPC certified for use in the European Union.

Features

  • Sturdy cast aluminum enclosure
  • Over current protection and 3 layers of Ethernet surge suppression on the PD port
  • IEEE802.11ac Compliant
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • Distances up to 4 mi (FCC) with MAC lock enabled
  • Meets class IP67 dust and water immersion protection standards
  • ETSI Standards (EU Region only): – DFS Dynamic Frequency Selection – TPC Transmit Power Control
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • RF Spectrum Survey Tools
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Up to 500 Mbps throughput
  • Power Supply and Enclosure covered by Three Year Warranty.
  • IEEE802.3at PoE Compliant PD
  • Environmentally Hardened -40º to +70ºC
  • Radio Internal Components covered by Lifetime Warranty.
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

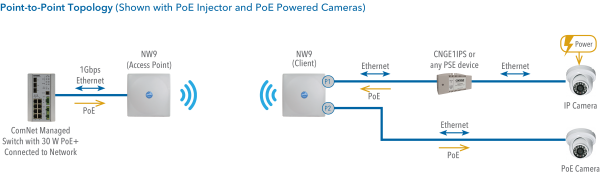

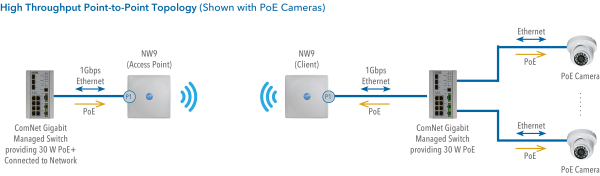

Application Diagram(s) (2)

Application Diagram(s) for NW9[E]Application Diagram(s) for NW9[E]

Ordering Information

Part NumberDescription
NW9Individual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port 1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, FCC certified for use in NA Region
NW9EIndividual Hardened Single Radio, Two Gb Ethernet Ports, One internal 19dBi 17° beamwidth directional antenna, includes pole mounting assembly, Port 1 Supports 802.3af/at PD PoE Power, Port 2 provides IEEE802.3at PSE PoE Power, ETSI certified for use in EU Region

* Enclosure covered by Three Year Warranty.
