Mini Industrially Hardened Point-To-Point Wireless Ethernet Kit for Short Range Deployments

NWK11/M Kit (Gen 4)

Example of Mini Industrially Hardened Point-To-Point Wireless Ethernet Kit for Short Range Deployments
NetWave®

Availability: NA Only

PDF Datasheet: en
pdfQuick StartpdfManual

icon

-40 º to +75 ºC

icon

Passive PD

icon

IP67

icon

1

icon

WARRANTY

The NetWave® NWK11/M mini industrially hardened wireless kit is a low cost option for short range deployments that requires full featured radio performance. The wide range of channel spectrum widths available on the NWK11/M package of radios gives you the option of narrowing channel bandwidths as your network grows which will increase the number of non-overlapping channels and improve stability. The NWK11/M series radio kit comes standard with integrated antennas and IP67 rated impact resistant ABS enclosures designed to survive the most extreme conditions.

The NWK11/M is FCC certified for use in North America, NWK11IC/M is IC Certified for use in Canada, and the NWK11E/M is ETSI, DFS and TPC certified for use in the European Union.

Features for NWK11/M Kit (Gen 4)

  • Complete wireless kit consisting of two radios, power supplies, and mounting hardware
  • 20, 40, and 80 MHz Channel Bandwidth Support
  • Up to 100 Mbps Throughput
  • 802.11a/n/ac Compliant
  • Distances up to 0.5 mi / 800 m (FCC / IC / ETSI)
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • RF Spectrum Survey Tools
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Firmware upgrades included free for the life of the product
  • Installation and Configuration Trainings Available
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty

Applications

  • Short-Range Video Surveillance
  • Multipurpose Networks
  • ITS Applications

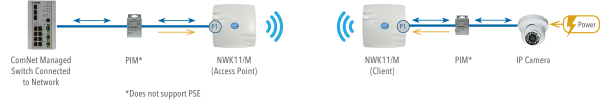

NWK11/M Kit (Gen 4) Application Diagram(s) (1)

Application Diagram(s) for NWK11/M Kit (Gen 4)

NWK11/M Kit (Gen 4) Ordering Information

Part NumberDescription
NWK11/MMini Industrially Hardened Narrow Bandwidth Wireless Radio Kit, Supports distances up to 0.5 mi/800 m, FCC certified for North America. 3 Year Warranty.
NWK11IC/MMini Industrially Hardened Narrow Bandwidth Wireless Radio Kit, Supports distances up to 0.5 mi/800 m, IC certified for Canada. 3 Year Warranty.
