Industrially Hardened Point-to-Point Wireless Ethernet Kit

NWK(1,2)

Example of Industrially Hardened Point-to-Point Wireless Ethernet Kit

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en  fr
DOC A&E Specs

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

IEEE802.3af

icon

IP67

icon

1

NetWave®

The NetWave pre-configured point-to-point industrially hardened wireless Ethernet Transmission kit that allows Ethernet data to be transmitted between a Client remote location and the Access Point or head end. The NWK1 and NWK2 support up to 95 Mbps throughput due to MIMO technology. An easy to read LED array displays unit operational status along with received signal strength ensuring optimal installation and operation. The units can be powered by an IEEE 802.3af PoE compliant device or through the supplied power injection module. The NWK1 is FCC certified for use in North America and the NWK2 is ETSI, DFS and TPC certified for use in the European Union. Each kit contains two passive power injectors, power supplies and mounting hardware.

Features

  • Pre-configured Access Point and Client units for quick setup
  • Up to 95Mbps Throughput
  • 802.11a/n Compliant
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • Powered by the included power injection module or by an IEEE802.3af PoE compliant device
  • Environmentally Hardened for use in unconditioned installations
  • Meets class IP67 dust and water immersion protection standards
  • ETSI Standards (EU Region only): – DFS Dynamic Frequency Selection – TPC Transmit Power Control
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
  • Integration of Ethernet where right-of-way issues mandate wireless communications
  • ITS traffic signalization networks and Video Detection Systems (VDS)
  • ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
  • Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments
  • Electrical substation video and perimeter surveillance

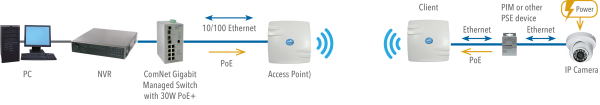

Application Diagram(s) (1)

Application Diagram(s) for NWK(1,2)

Ordering Information

Part NumberDescription
NWK1Industrially Hardened Point-to-Point Wireless Ethernet Kit, distances up to 2 mi/3.2 km. Consult ComNet tech support for system designs beyond 2 mi/3.2 km. FCC certified for North America
NWK2Industrially Hardened Point-to-Point Wireless Ethernet Kit, distances up to 2 km/1.25 mi, ETSI certified for European Union

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
