Mini Industrially Hardened Point-to-Point Wireless Ethernet Kit

NWK(1,2)/M

Example of Mini Industrially Hardened Point-to-Point Wireless Ethernet Kit

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en  fr

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

IEEE802.3af PD

icon

IP67

icon

1

NetWave®

The NetWave® industrially hardened wireless Ethernet transmission kit includes a Client and an Access Point. The NWK1/M and NWK2/M support up to 95Mbps throughput using MIMO technology. The units can be powered by an IEEE 802.3af PoE compliant device or through the supplied power injection module. The NWK1/M is FCC certified for use in North America and the NWK2/M is ETSI, DFS and TPC certified for use in the European Union. This mini unit come in an ultrasmall form factor that is a new addition to the ComNet NetWave product family.

Features

  • Up to 95Mbps Throughput
  • 802.11a/n Compliant
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • Powered by the included power injection module or by an IEEE802.3af PoE compliant device
  • Environmentally Hardened -40 º to 75 ºC
  • Meets class IP67 dust and water immersion protection standards
  • ETSI Standards (EU Region only): – DFS Dynamic Frequency Selection – TPC Transmit Power Control
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • Antenna Alignment Tools
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
  • Integration of Ethernet where right-of-way issues mandate wireless communications
  • ITS traffic signalization networks and Video Detection Systems (VDS)
  • ITS roadside and city center CCTV surveillance, and surveillance of high-value or mission-critical assets
  • Wireless communications in manufacturing, petrochemical refineries, wastewater treatment facilities, and other industrial automation and control applications operating in harsh or out-of-plant environments

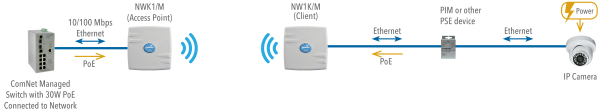

Application Diagram(s) (1)

Application Diagram(s) for NWK(1,2)/M

Ordering Information

Part NumberDescription
NWK1/MIndustrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Supports distances up to 2 mi/3.2 km, FCC certified for North America
NWK2/MIndustrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Supports distances up to 2 km/1.25 mi, ETSI certified for European Union

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
