Industrially Hardened High Performance Wireless Kit for High Density Environments

NWK(1,2)[IC]/M Series (Gen 3)

Example of Industrially Hardened High Performance Wireless Kit for High Density Environments
NetWave®

Availability: Obsoleted (Click for Replacements List)

PDF Datasheet: en
pdfManualpdfQuick Start

icon

-40 º to +75 ºC

icon

IEEE802.3at

icon

IP67

icon

1

icon

1

icon

WARRANTY

The NetWave® NWK(1,2)[IC]/M industrially hardened wireless Ethernet transmission kit includes a Client and an Access Point. The NWK1[IC]/M and NWK2/M support up to 240 Mbps throughput using MIMO technology. The units can be powered by an IEEE 802.3af PoE compliant device or through an optional power injection module. The NWK1/M is FCC certified for use in North America, the NWK1IC/M is IC certified for use in Canada, and the NWK2/M is ETSI, DFS, and TPC certified for use in the European Union. This mini unit come in an ultra-small form factor that is a new addition to the ComNet NetWave product family.

Features for NWK(1,2)[IC]/M Series (Gen 3)

  • Narrow Channel Spectrum Widths for large and noisy deployments
  • 5, 10, 20 and 40 Mhz Channel Bandwidth Support
  • Up to 240 Mbps Throughput
  • 802.11a/n Compliant
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • IEEE802.3at PoE Compliant PD on port 1
  • IEEE802.3af power source (PSE) available on port 2
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Scalable - Narrow Channel 5 and 10 MHz Bandwidths will allow you to expand your WLAN without losing reliability by increasing the total number of non-overlapping channels
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty
  • Firmware upgrades included free for the life of the product
  • Installation and Configuration Trainings Available
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • High-Bandwidth Video Surveillance
  • Multipurpose Networks
  • ITS Applications

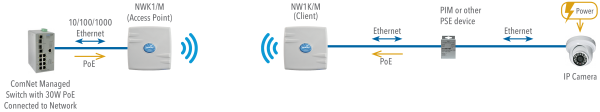

NWK(1,2)[IC]/M Series (Gen 3) Application Diagram(s) (1)

Application Diagram(s) for NWK(1,2)[IC]/M Series (Gen 3)

NWK(1,2)[IC]/M Series (Gen 3) Ordering Information

Part NumberDescription
NWK1/MIndustrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Supports distances up to 2 mi/3.2 km, FCC certified for North America. Enclosure 3 Years, Internal Components Lifetime Warranty.
NWK2/MIndustrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Supports distances up to 2 km/1.25 mi, ETSI certified for European Union. Enclosure 3 Years, Internal Components Lifetime Warranty.
NWK1IC/MIndustrially Hardened Mini Point-to-Point Wireless Ethernet Kit, Supports distances up to 2 km/1.25 mi, IC certified for Canada. Enclosure 3 Years, Internal Components Lifetime Warranty.
