Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Kit

NWK9 Series

Example of Ultra-High Throughput, Impact-Resistant Hardened Wireless Ethernet Kit
NetWave®

Availability: Worldwide

PDF Datasheet: en
pdfManualpdfQuick Start
DOC A&E Specs

icon

-40 º to +70 ºC

icon

5GHz 802.11ac

icon

802.3at

icon

802.3af/at

icon

IP67

icon

2

The NetWave NWK9[E] ultra-high throughput, impact-resistant hardened wireless Ethernet transmission kit comes preconfigured with one Client and one Access Point. This single radio model was designed for high throughput point-to-point applications and comes with an integrated 19dBi, 17º beamwidth antenna. The NWK9[E] supports up to 500 Mbps throughput using 802.11ac MIMO technology. The units can be powered by an 802.3af/at PoE compliant device or through a sold-separately PoE injector with the second Ethernet port serving as an IEEE802.3af power source. The NWK9 is FCC certified for use in North America and the NWK9E is ETSI, DFS and TPC certified for use in the European Union.

Features for NWK9 Series

  • IEEE802.3at PoE-compliant PD
  • Over current protection and 3 layers of Ethernet surge suppression on the PD port
  • Distances up to 2 mi (FCC) or 2km (ETSI)
  • Ultra-high throughput
  • Environmentally hardened for deployment in difficult unconditioned out-of-plant and roadside installations
  • ETSI Standards (EU Region only): – DFS Dynamic Frequency Selection – TPC Transmit Power Control
  • Secure transmission: WPA2 – AES or TKIP encryption
  • ComNet Antenna alignment feature eases installation and setup
  • RF Spectrum Survey Tools
  • Antenna Alignment Tools
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Radio Internal Components covered by Lifetime Warranty
  • Enclosure covered by Three Year Warranty
  • Sturdy cast aluminum enclosure
  • IEEE802.11ac Compliant
  • Distances up to 4 mi (FCC) with MAC lock enabled
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • High Throughput Back Haul Link for installations that require connecting to more than one Ethernet device
  • Ideal for PoE Camera connectivity
  • Simple to deploy and cost-effective alternative to physical connections to Ethernet edge equipment
  • Integration of Ethernet where right-of-way issues mandate wireless communications

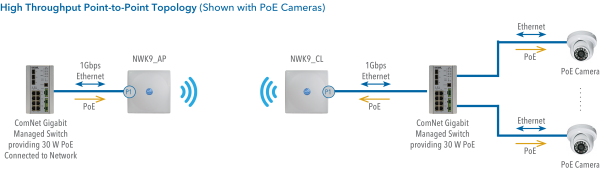

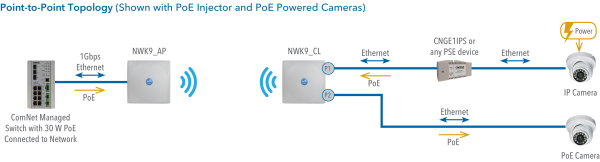

NWK9 Series Application Diagram(s) (2)

Application Diagram(s) for NWK9 SeriesApplication Diagram(s) for NWK9 Series

NWK9 Series Ordering Information

Part NumberDescription
NWK9Hardened Radio Kit with one Access Point (NWK9_AP) and one Client (NWK9_CL), FCC certified for use in NA Region. Lifetime Warranty.
NWK9EHardened Radio Kit with one Access Point (NWK9_AP) and one Client (NWK9_CL), ETSI certified for use in EU Region. Lifetime Warranty.
