Solar Power Ethernet Kit For Remote Locations 15 Watts Continuous Power System With 6 Hours Of Peak Sunlight

NWKSP1

Availability: Worldwide

PDF Datasheet: en
pdfManual

icon

BATTERIES

icon

IEEE802.3af

NetWave®

The NetWave NWKSP1 Solar off the grid power system is designed for applications where a remote camera or wireless repeater is needed but power is not available or the cost to run power is too expensive. NetWave Solar is a complete system for providing remote power to edge communications equipment. The kit includes a high quality photovoltaic solar panel, valve-regulated lead-acid battery, outdoor enclosure, solar charge controller, PoE midspan injector and mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks operated by a special key for high security. The enclosure and solar panel can be mounted on a two to four inch pole or wall mounted with the included mounting hardware. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection from overcharge and over discharge while the battery provides outstanding deep cycle and cold weather performance.

Features

  • Solar panel is designed with a heavy duty anodized frame that is capable of withstanding high wind pressure, hail and snow load.
  • Solar Panel features outstanding low light performance
  • High Efficiency Multicrystalline Photovoltaic Solar Panel
  • Weatherproof powder coated steel enclosure that meets NEMA 4X/IP65 weatherproofing standards
  • Valve Regulated Sealed Lead Acid AGM Battery with great low temperature performance to -40ºC
  • 12 VDC Solar Charge Controller with LCD Screen, Intelligent PWM Charging Mode, Adjustable charging and discharging parameters
  • 48 VDC Gigabit PoE Injector
  • Solar Controller Diagnostics LCD Display Supporting Readout of Several Parameters Including System Charge/ Discharge and Battery Voltage
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Wireless Perimeter Surveillance
  • Temporary Network Surveillance Deployments
  • Remote Surveillance Cameras
  • Construction Site Network Access

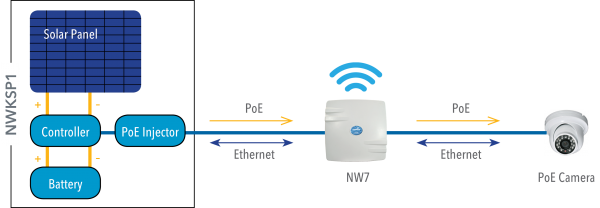

Application Diagram(s) (1)

Application Diagram(s) for NWKSP1

Ordering Information

Part NumberDescription
NWKSP115W continuous power solution requiring 6 hours of peak sun a day

The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
