Solar Power Ethernet Kit For Remote Locations 30 Watts Continuous Power System With 6 Hours Of Peak Sunlight

NWKSP3

Example of Solar Power Ethernet Kit For Remote Locations 30 Watts Continuous Power System With 6 Hours Of Peak Sunlight
NetWave®

Availability: Worldwide

PDF Datasheet: en
pdfManual

icon

BATTERIES

icon

IEEE802.3at

icon

TAA Compliant

The NetWave NWKSP3 Solar off the grid power system is designed for applications where a remote camera or wireless repeater is needed but power is not available or the cost to run power is too expensive. NetWave Solar is a complete system for providing remote power to edge communications equipment. The kit includes high quality photovoltaic solar panels, valve-regulated lead-acid batteries (NA only), outdoor enclosure, solar charge controller, PoE midspan injector and mounting hardware. The steel outdoor enclosure has a gasket hinged lid with two tamper proof locks operated by a special key for high security. The enclosure can be mounted on a two to four inch pole or wall mounted with the included mounting hardware. The Solar Panels include a top of pole mount requiring a 4” diameter pole. A side of pole mount is available as an optional accessory. The included 30A solar charge controller supports an LCD screen for local diagnostics and system health monitoring, Intelligent PWM charging mode and battery protection from overcharge and over discharge while the batteries provide outstanding deep cycle and cold weather performance.

Features for NWKSP3

  • Solar panels are designed with heavy duty anodized frames that are capable of withstanding high wind pressure, hail and snow load
  • Solar Panels feature outstanding low light performance
  • High Efficiency Multicrystalline Photovoltaic Solar Panels
  • Weatherproof powder coated steel enclosure that meets NEMA 4X/IP65 weatherproofing standards
  • Valve Regulated Sealed Lead Acid AGM Battery with great low temperature performance to -40ºC (Available in NA only)
  • 12 VDC Solar Charge Controller with LCD Screen, Intelligent PWM Charging Mode, Adjustable charging and discharging parameters
  • Gigabit PoE+ Injector
  • Intelligent Controller
  • Solar Controller Diagnostics LCD Display Supporting Readout of Several Parameters Including System Charge/ Discharge and Battery Voltage
  • Ampere Hours Monitoring of Accumulated Charge/Discharge
  • Intelligent PWM Charge Controller
  • Automatic Temperature Compensation
  • Adjustable Charge/Discharge Control Parameters
  • Battery Low Voltage Disconnection
  • Battery Reverse Connection Protection
  • Overload/Short Circuit Protection
  • Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput

Applications

  • Remote Surveillance Cameras
  • Wireless Perimeter Surveillance
  • Temporary Network Surveillance Deployments
  • Construction Site Network Access

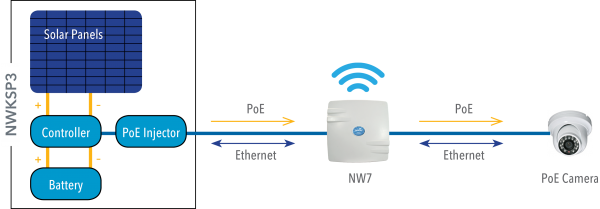

NWKSP3 Application Diagram(s) (1)

Application Diagram(s) for NWKSP3

NWKSP3 Ordering Information

Part NumberDescription
NWKSP330 W continuous power solution requiring 6 hours of peak sun a day. Only available in North America. 1 Year Warranty.
NWKSP3/NB30 W continuous power solution requiring 6 hours of peak sun a day. No battery. Not available in North America. 1 Year Warranty.
