Power Over Ethernet (PoE) Midspan Injector For 10/100TX

CWPOEIPS-15

Example of Power Over Ethernet (PoE) Midspan Injector For 10/100TX

Availability: Worldwide

PDF Datasheet: en
pdfManual

ComNet CWPOEIPS-15 is a low-cost power over Ethernet (PoE) midspan injection module that injects 48 VDC at 0.3 amperes to the unused pairs of any UTP or STP CAT-3, CAT-4, or CAT-5 network cable. Operating power and 10/100TX Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. Housed in a compact, rugged, light-weight package, and utilizing a completely self-contained 100 to 240 VAC input power supply, the CWPOEIPS is fully compliant with the requirements of IEEE 802.3af for Power Sourcing Equipment (PSE), and features auto-detection of powered devices (PDs). Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for all PDs drawing a maximum of 15.4 watts. The unit provides AC line and powered device over-voltage and short circuit protection. Ideally suited to fiber optic, wireless, or other networks where it may be difficult to furnish operating power to the PDs, the CWPOEIPS is a true plug-and-play product requiring no user configuration or other set-up. The unit is designed for deployment in benign/conditioned 0 to +45 degree C operating environments.

Features for CWPOEIPS-15

  • Easily Combines Operating Power and 10/100TX Ethernet Data to One Network Cable
  • Fully Compliant with IEEE Standard 802.3af for Power Sourcing Equipment
  • Internal 100 to 240 VAC Power Supply Provides Short Circuit Protection for Powered Devices
  • UL, CUL, FCC, CE, EN60950-1, and RoHS Approved
  • 5-Year Warranty
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Compact form-factor saves space in those installations where space may be at a premium.

Applications

  • Remote operating power for IP CCTV cameras for security and surveillance systems
  • Remote operating power for Voice over IP (VoIP) telephony networks
  • Remote operating power for wireless LAN access points
  • Industrial Security, Transportation/ITS, and Industrial Control/Factory Automation IP Networks

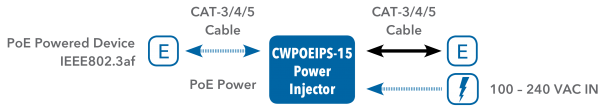

CWPOEIPS-15 Application Diagram(s) (1)

Application Diagram(s) for CWPOEIPS-15

CWPOEIPS-15 Ordering Information

Part NumberDescription
CWPOEIPS-15Power over Ethernet midspan injector, compatible with IEEE802.3af
