Passive Power Over Ethernet (PoE) Midspan Injector For 10/100TX

PIM1

Example of Passive Power Over Ethernet (PoE)  Midspan Injector For 10/100TX

Availability: Worldwide

PDF Datasheet: en
pdfManual

icon

-40 º to +75 ºC

icon

PASSIVE

icon

1

icon

Made in the USA

icon

WARRANTY

The ComNet PIM1 is a low-cost industrial passive power over Ethernet (PoE) midspan injection module that injects a passive voltage of 12 to 48 VDC at up to 0.625 amperes to the unused pairs of any UTP or STP CAT-3, CAT-4, or CAT-5 network cable. Operating power and 10/100TX Ethernet data are easily combined on one cable, eliminating the need to install additional power outlets and electrical cabling. Housed in a compact, rugged, light-weight package, the unit is powered by a customer furnished power supply. The PIM1 provides passive power at the same voltage level as the input power supply and can be used to power any devices that do not require IEEE 802.3af/at negotiation such as many legacy PoE devices. Transmission distances of up to 330 feet (100 meters) are supported, and this injector supplies operating power for devices drawing a maximum of 30 watts. The PIM1 is a true plug-and-play product requiring no user configuration or other set-up.

Features for PIM1

  • Easily Combines Operating Power and 10/100TX Ethernet Data to One Network Cable
  • Powered by an external 12-48VDC or 24VAC power supply to provide flexible operating power for non-standard PoE devices
  • UL, CUL, FCC, CE, EN60950-1, and RoHS Approved
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Compact form-factor saves space in those installations where space may be at a premium.

Applications

  • Remote operating power for IP CCTV cameras for security and surveillance systems
  • Remote operating power for Voice over IP (VoIP) telephony networks
  • Remote operating power for wireless LAN access points
  • Industrial Security, Transportation/ITS, and Industrial Control/Factory Automation IP Networks

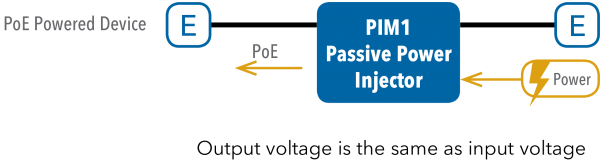

PIM1 Application Diagram(s) (1)

Application Diagram(s) for PIM1

PIM1 Ordering Information

Part NumberDescription
PIM1Passive Power over Ethernet industrial midspan injector. Lifetime Warranty.
