Industrial DIN Rail Mounting 12 or 24 Volt Power Supplies

PS-AMR Series

Example of Industrial DIN Rail Mounting 12 or 24 Volt Power Supplies

Availability: Worldwide

PDF Datasheet: en  fr
DWG CAD

icon

12 OR 24 V

icon

-40 º to +71 ºC

icon

DIN Rail

The ComNet PS-AMR Series offer a complete range of high quality, low noise switching mode power supplies of various output sizes ideally suited to the entire ComNet industrial product range that require either 12 or 24VDC power input. These rugged units are DIN rail mountable, providing an ideal mounting configuration to a mating ComNet industrial switch or any product using our range of DIN rail mounting adapters. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.

Features

  • Adjustable output voltage range support
  • Universal AC input: 90 to 264 VAC, 47-63Hz
  • Designed for standard 7.5 or 15 mm DIN rail mount installations
  • High operating efficiency; up to 89%
  • Small package for limited space installations
  • Wide operating temperature range
  • 3 Year Warranty
  • No fans or forced-air cooling; cooling via natural convection eliminates unreliable and troublesome fans/moving parts, with no periodic maintenance requirements.

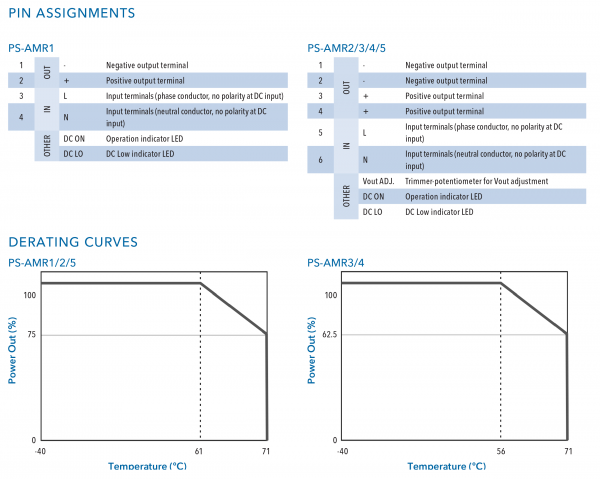

Application Diagram(s) (1)

Application Diagram(s) for PS-AMR Series

Ordering Information

Part NumberDescription
PS-AMR1-12

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
