Single Video Receiver with Manual Gain Control

FVR10

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD
DOC A&E Specs

The FVR10 series is included in our Visio Stencil Library

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

1 CH

icon

Made in the USA

icon

WARRANTY

The ComNet FVR10 video receiver detects an AM video signal on one multimode optical fiber. The receiver utilizes Manual Gain Control and is compatible with the ComNet FVT11M and the FVT20 transmitters.

Features

  • Full color compatibility
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • AM Video Transmission
  • Manual Gain Control
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Compatible with NTSC, PAL, or SECAM Video Standards

Applications

  • CCTV (Fixed Video)
  • Video surveillance / security

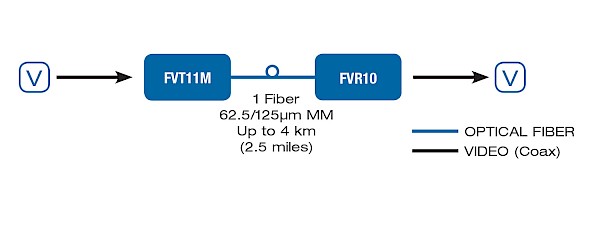

Application Diagram(s) (1)

Application Diagram(s) for FVR10

Ordering Information

Part NumberDescription
FVR10Video Receiver (850 nm)

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
