8-Bit Digitally Encoded Video Transmitter

FVT1/M Series

Example of 8-Bit Digitally Encoded Video Transmitter

Availability: Not available in North America

PDF Datasheet: en  es
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED ☞

icon

1

icon

Made in the USA

icon

WARRANTY

icon

-40 º to +75 ºC

The ComNet FVT1(M,S)1/M series video transmitters transmit one channel of video over one optical fiber. The FVT1/M transmitter is available in multimode and single-mode versions.

Features

  • 8-bit digitally encoded video exceeds all requirements for EIA RS-250C medium-haul transmission.
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Lifetime warranty

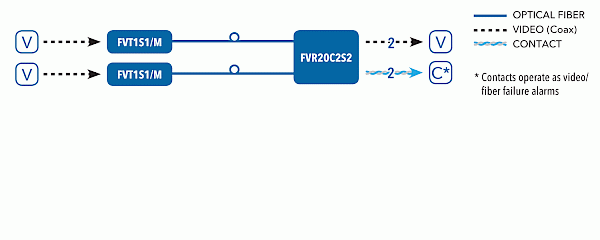

Application Diagram(s) (1)

Application Diagram(s) for FVT1/M Series

Ordering Information

Part NumberDescription
FVT1S1/MMini Video Transmitter
FVT1M1/MMini Video Transmitter

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
