Single, Dual, and Quad-Channel 10-Bit Digitally Encoded Short-Haul Video and Contact Closure

FVT/FVR10C1, FVR20C2 and FVR40C4 Series

Example of Single, Dual, and Quad-Channel 10-Bit Digitally Encoded Short-Haul Video and Contact Closure

Availability: Worldwide
The FVT/FVR10C1, FVR20C2 and FVR40C4 Series is being eliminated. Please contact ComNet Customer Care for last time buy information and elimination date.

PDF Datasheet: en  es
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED ☞

icon

1, 2 OR 4

icon

1, 2 OR 4

icon

Made in the USA

icon

WARRANTY

icon

-40 º to +75 ºC

The ComNet series video transmitters and receivers support the transmission of one, two, or four independent short-haul quality 10-bit Digitally Encoded video signals and one, two, or four contact closures in the direction of the video over multimode or single mode optical fibers. This module is universally compatible with major CCTV camera manufacturers.

Features for FVT/FVR10C1, FVR20C2 and FVR40C4 Series

  • NTCIP compatible
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Automatic resettable fuses on all power lines
  • Supports one, two or four Contact Closures in the direction of video, ideal for tamper switch, etc.
  • Exceptionally low video distortion with zero performance variation vs. optical path
  • Distances up to 4 km (2.5 mi) over Multimode Fiber
  • Distances up to 54 km (33.6 mi) over Single Mode Fiber
  • 12VDC or 24VAC powered FVT10C1/M mini unit can be powered directly from camera
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

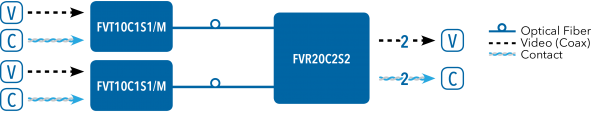

FVT/FVR10C1, FVR20C2 and FVR40C4 Series Application Diagram(s) (1)

Application Diagram(s) for FVT/FVR10C1, FVR20C2 and FVR40C4 Series

FVT/FVR10C1, FVR20C2 and FVR40C4 Series Ordering Information

Part NumberDescription
FVT10C1M1/MMini Video Transmitter. Lifetime Warranty.
FVT10C1S1/MMini Video Transmitter. Lifetime Warranty.
FVT10C1M11-Channel ComFit Video/Contact Transmitter. Lifetime Warranty.
FVT10C1S11-Channel ComFit Video/Contact Transmitter. Lifetime Warranty.
FVR10C1M11-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
FVR10C1S11-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
FVR20C2M22-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
FVR20C2S22-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
FVR40C4M44-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
FVR40C4S44-Channel ComFit Video/Contact Receiver. Lifetime Warranty.
