Hardened Network Management Module

CN-NMS

Example of Hardened Network Management Module

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

Fast Ethernet Channels

icon

Made in the USA

icon

WARRANTY

The CN-NMS network management device is designed to provide remote monitoring and control of ComNet dual redundant video, data, intercom dry contact and Ethernet transmission products. The module provides management for up to four C2-NMS connected chassis. The CN-NMS itself can either reside within a C2-NMS or C3 chassis. Fault conditions are reported by SNMP, E-mail and web GUI or by use of the five integrated alarm relays. In addition an audible buzzer alarm can be configured for rapid local fault indication.

Features for CN-NMS

  • Manage up to 24 ComNet transmission modules located across four C2-NMS chassis
  • Web browser interface
  • SNMP V2c supported
  • SMTP email alerts provided on alarm conditions
  • CLI support via serial interface
  • 5 user configurable contact closure outputs
  • User configurable audible alarm for local fault reporting
  • Made in the U.S.A.
  • Lifetime Warranty

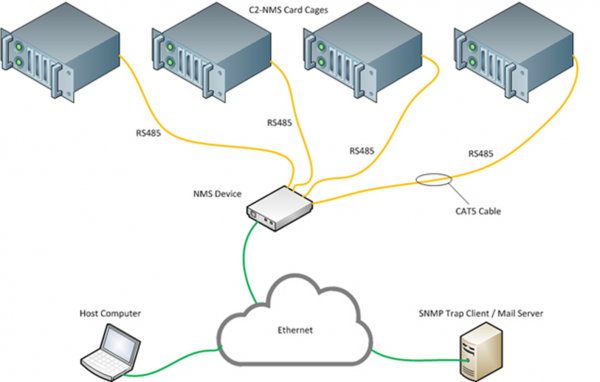

CN-NMS Application Diagram(s) (1)

Application Diagram(s) for CN-NMS

CN-NMS Ordering Information

Part NumberDescription
CN-NMSManagement module for up to four C2-NMS chassis

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
