2 10-bit Digitally Encoded Video + 2 Bi-directional Data + Aiphone™ Intercom + 4 Contact Closure + 100Mbps Ethernet + Redundant Point-to-Point Dual SFP Optical Ports

FVT/FVR20D2I1C4E

Example of 2 10-bit Digitally Encoded Video + 2 Bi-directional Data + Aiphone™ Intercom + 4 Contact Closure + 100Mbps Ethernet + Redundant Point-to-Point Dual SFP Optical Ports

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

2 CH

icon

2 CH

icon

1 CH

icon

1 CH

icon

1 CH

icon

3 CH

icon

-40 º to +75 ºC

icon

INCLUDED ☞

icon

Made in the USA

icon

WARRANTY

The ComNet FVT/FVR20D2I1C4E environmentally hardened units provide transmission of two independent video channels and two bi-directional data channels. They also provide transmission of one Aiphone™ intercom channel and four contact closure channels with tamper supervision in addition to one 10/100Mbps Ethernet channel. The FVT/FVR20D2I1C4E has dual SFP optical ports to provide a redundant point-to-point fail safe topology in the event of loss of one fiber or one optical module.

Features

  • 2 Bi-directional data channels supporting RS232, RS422, and 2 or 4-wire RS485 with tri-state data interfaces
  • Duplex Aiphone™ intercom channel
  • Four contact closure channels with supervision
  • True 100Mb Ethernet channel
  • Dual SFP optical ports redundant Point-to-Point configuration
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Operational status monitored via web management interface through the addition of the ComNet network managed chassis and network management interface module
  • Made in the USA
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

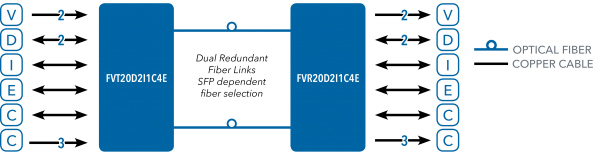

Application Diagram(s) (1)

Application Diagram(s) for FVT/FVR20D2I1C4E

Ordering Information

Part NumberDescription
FVT20D2I1C4ETransmitter 2 Video / Bi-directional Data / Aiphone™ Intercom / 4 Contact Closure / 100Mb Ethernet / SFP
FVR20D2I1C4EReceiver 2 Video / Bi-directional Data / Aiphone™ Intercom / 4 Contact Closure / 100Mb Ethernet / SFP

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
