4 10-bit Digitally Encoded Video + 2 Bi-directional Data + Aiphone™ Intercom + 4 Contact Closure + 100 Mbps Ethernet + Redundant Point-to-Point Dual SFP Optical Ports
FVT/FVR40D2I1C4E
Datasheet:
CAD
The ComNet FVT/FVR40D2I1C4E environmentally hardened units provide transmission of four independent video channels and two bi-directional data channels. They also provide transmission of one Aiphone intercom channel and four contact closure channels with tamper supervision in addition to one 10/100Mbps Ethernet channel. The FVT/FVR40D2I1C4E has dual SFP optical ports to provide a redundant point-to-point fail safe topology in the event of loss of one fiber or one optical module.
Features for FVT/FVR40D2I1C4E
- Operational status monitored via web management interface through the addition of the ComNet network managed chassis and network management interface module
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.

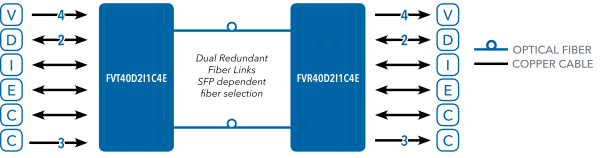

FVT/FVR40D2I1C4E Application Diagram(s) (1)
FVT/FVR40D2I1C4E Ordering Information
| Part Number | Description |
|---|---|
| FVT40D2I1C4E | Transmitter 4 Video / Bi-directional Data / Aiphone™ Intercom / 4 Contact Closure / 100Mb Ethernet / SFP. Lifetime Warranty. |
| FVR40D2I1C4E | Receiver 4 Video / Bi-directional Data / Aiphone™ Intercom / 4 Contact Closure / 100Mb Ethernet / SFP. Lifetime Warranty. |
* Small Form-Factor Pluggable Module. Sold separately.
