10-bit Digitally Encoded Bi-directional Short-haul Video + Bi-directional Data + 2 Bi-directional Audio + Bi-directional Contact Closure

FVTR1D1A2C1 Series

Example of 10-bit Digitally Encoded Bi-directional Short-haul Video + Bi-directional Data + 2 Bi-directional Audio + Bi-directional Contact Closure

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

1

icon

1

icon

2

icon

1

icon

Made in the USA

icon

WARRANTY

icon

-40 º to +75 ºC

The ComNet FVTR1D1A2C1(M,S)1 series transceivers support simultaneous transmission of short-haul quality 10-bit bi-directional digitally encoded video plus one bi-directional data channel, two channels of bi-directional audio and contact closure over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces, and most major data protocols. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio.

Features

  • 24-Bit 96kHz Digitally Encoded Transmission
  • Supports RS232, RS422 or RS485 (2 or 4-wire) data interfaces
  • Transmits Balanced Line-Level Audio up to +6dBm
  • Automatic resettable fuses on all power lines
  • Distances up to 30 miles (48 km)
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • 20Hz - 18kHz Audio Bandwidth
  • 600 Ohms Audio Input Impedance
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

Application Diagram(s) (1)

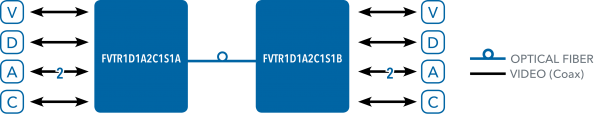

Application Diagram(s) for FVTR1D1A2C1 Series

Ordering Information

Part NumberDescription
FVTR1D1A2C1M1AVideo/Data/Audio/Contact Transceiver, "A end"
FVTR1D1A2C1M1BVideo/Data/Audio/Contact Transceiver, "B end"
FVTR1D1A2C1S1AVideo/Data/Audio/Contact Transceiver, "A end"
FVTR1D1A2C1S1BVideo/Data/Audio/Contact Transceiver, "B end"
