4-channel 10-bit Digitally Encoded Video + 2 Bi-directional Data Channels + 1 Bi-directional Contact Closure

FVT/FVR4012 Series

Example of 4-channel 10-bit Digitally Encoded Video + 2 Bi-directional Data Channels + 1 Bi-directional Contact Closure
ValueLine

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD
DOC A&E Specs

icon

4

icon

2

icon

1

icon

Made in the USA

icon

WARRANTY

icon

-40 º to +75 ºC

icon

TAA Compliant

The ComNet FVT/FVR4012(M)(S)1 Series transmits four channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR4012 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485-2/4W data.

Features for FVT/FVR4012 Series

  • Robust design ensures extremely high reliability in unconditioned out-of-plant environments
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Supports RS 232, RS 422, and 2- or 4-wire RS 485
  • One bi-directional contact closure
  • Compatible with all NTS C, PAL, or SE CAM CCTV camera systems
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
  • Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

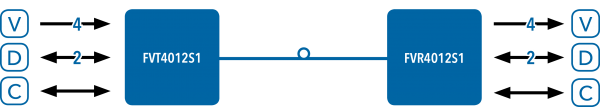

FVT/FVR4012 Series Application Diagram(s) (1)

Application Diagram(s) for FVT/FVR4012 Series

FVT/FVR4012 Series Ordering Information

Part NumberDescription
FVT4012M1Transmitter 4 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty.
FVT4012S1Transmitter 4 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty.
FVR4012M1Receiver 4 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty.
FVR4012S1Receiver 4 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty.
