8-channel 10-bit Digitally Encoded Video + 2 Bi-directional Data Channels + 1 Bi-directional Contact Closure
FVT/FVR8012 Series
Datasheet:
CAD
A&E Specs
The ComNet FVT/FVR8012(M,S)1 Series transmits eight channels of video utilizing state of the art 10-bit digital encoding and decoding for very high quality video transmission, along with two channels of bi-directional data and one bi-directional contact closure over one single mode or multimode optical fiber. This equipment is environmentally hardened and suitable for use in unconditioned roadside or out-of plant installations. The FVT/FVR8012 is compatible with NTSC, PAL and SECAM video transmission protocols and supports bi-directional RS232, 422 and 485-2/4W data.
Features for FVT/FVR8012 Series
- Supports RS 232, RS 422, and 2- or 4-wire RS 485
- One bi-directional contact closure
- Compatible with all NTS C, PAL, or SE CAM CCTV camera systems
- Robust design ensures extremely high reliability in unconditioned out-of-plant environments
- Status indicating LEDs provide rapid indication of critical operating parameters.
- Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
- ComFit standard form factor is interchangeable between stand-alone or rack mount use.
- 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
- Tested and certified by an independent laboratory for full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/ TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
- Standard ComFit models are hot-swappable.
- Lifetime Warranty

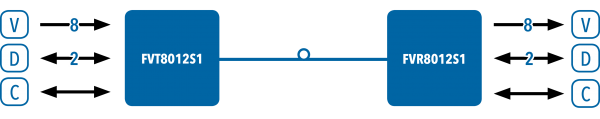

FVT/FVR8012 Series Application Diagram(s) (1)
FVT/FVR8012 Series Ordering Information
| Part Number | Description |
|---|---|
| FVT8012M1 | Transmitter 8 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty. |
| FVT8012S1 | Transmitter 8 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty. |
| FVR8012M1 | Receiver 8 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty. |
| FVR8012S1 | Receiver 8 Video / 2 Bi-directional Data / 1 Contact Closure. Lifetime Warranty. |
