10-bit digitally encoded video with "Up-the-Coax" extended distance or bi-directional data (RS232, RS422, RS485 2/4W)

FVT/FVR110 Series

Example of 10-bit digitally encoded video with "Up-the-Coax" extended distance or bi-directional data (RS232, RS422, RS485 2/4W)

Availability: Worldwide

PDF Datasheet: en
pdfManual
DWG CAD

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

1

icon

1

icon

1

icon

Made in the USA

icon

WARRANTY

icon

TAA Compliant

The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports “up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal.

Features for FVT/FVR110 Series

  • Distances up to 30 miles (48 km)
  • Automatic resettable fuses on all power lines
  • Status indicating LEDs provide rapid indication of critical operating parameters.
  • Supports Panasonic Proteus™, Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems
  • 1 Full Duplex Data channel
  • 1 Full Duplex Contact Closure
  • Time-Based Corrected Up-the-Coax Data
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • 10-bit digitally encoded short-haul video transmission meets the requirements of the EIA RS-250C standard.
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

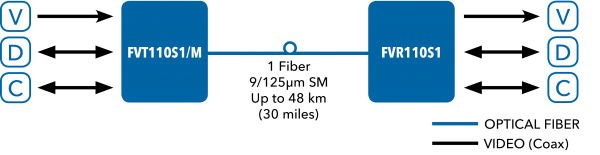

FVT/FVR110 Series Application Diagram(s) (1)

Application Diagram(s) for FVT/FVR110 Series

FVT/FVR110 Series Ordering Information

Part NumberDescription
FVT110M1/MMini Video Transmitter/Data Transceiver. Lifetime Warranty.
FVT110M1Video Transmitter/Data Transceiver. Lifetime Warranty.
FVR110M1Video Receiver/Data Transceiver. Lifetime Warranty.
FVT110S1/MMini Video Transmitter/Data Transceiver. Lifetime Warranty.
FVT110S1Video Transmitter/Data Transceiver. Lifetime Warranty.
FVR110S1Video Receiver/Data Transceiver. Lifetime Warranty.
