Digitally Encoded Video with Bi-Directional Data and Simplex Contact Closure

FVT/FVR1D1 & FVR2D2 Series

Example of Digitally Encoded Video with Bi-Directional Data and Simplex Contact Closure

Availability: Not available in North America

PDF Datasheet: en  es
pdfManual
DWG CAD
DOC A&E Specs

icon

INCLUDED ☞

icon

-40 º to +75 ºC

icon

1

icon

1

icon

1*

icon

Made in the USA

icon

WARRANTY

The ComNet FVT1D1[/M] video transmitter, along with the FVR1D1 and FVR2D2, supports the transmission of digital video transmission and bi-directional RS422 or 2- or 4-wire RS485 data channel over multimode or single mode optical fiber(s). When the unit is operated in the return RS422 2-wire data mode, a simplex contact closure channel is available in the video direction. This module is universally compatible with major CCTV camera manufacturers.

Features

  • Full color compatibility
  • Automatic resettable fuses on all power lines
  • Digitally Encoded Video
  • Bi-directional RS422 or RS485 data
  • Contact Closure available in return RS422 2-wire data mode
  • Distances up to 33 miles (54 km) without repeaters
  • Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required.
  • Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events.
  • ComFit standard form factor is interchangeable between stand-alone or rack mount use.
  • Compatible with NTSC, PAL, or SECAM Video Standards
  • Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
  • Standard ComFit models are hot-swappable.
  • Lifetime Warranty

Application Diagram(s) (1)

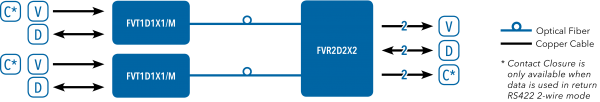

Application Diagram(s) for FVT/FVR1D1 & FVR2D2 Series

Ordering Information

Part NumberDescription
FVT1D1M1/MMini Video Transmitter, Bi-directional Data
FVT1D1M1Video Transmitter, Bi-directional Data
FVR1D1M1Video Receiver, Bi-directional Data
FVR2D2M2Dual Video Receiver with Bi-directional Data
FVT1D1S1/MMini Video Transmitter, Bi-directional Data
FVT1D1S1Video Transmitter, Bi-directional Data
FVR1D1S1Video Receiver, Bi-directional Data
FVR2D2S2Dual Video Receiver with Bi-directional Data

☞ Power supplies provided in North America only. The power supplies provided with ComNet products are designed for benign 0 º to 50 ºC applications. Hardened power supplies are available; consult the factory to select the right power supply for your application.
